نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:

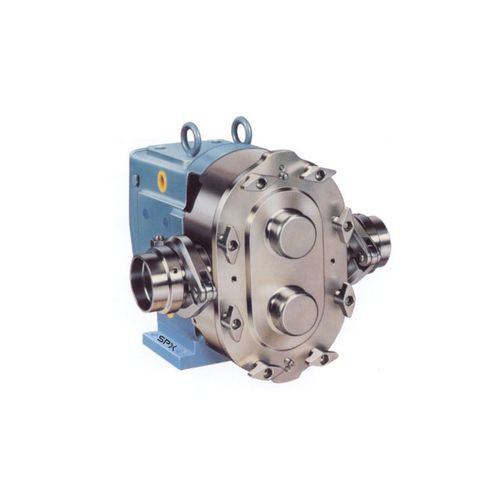

Food product pump Universal 1 series
برند:
Waukesha Cherry-Burrell
مشخصات:
PUMPS / POSITIVE DISPLACEMENT PUMPS
Aseptic positive displacement pumps. Live steam or sterile solution is circulated to ports, cover, product seal areas, where bacteria might enter.
FEATURES
Live steam or sterile solution is circulated to ports, cover and product seal areas, where bacteria might enter.
Uses live steam or sterile fluid
316L stainless steel pump body standard
Mechanical seals standard
Easy to clean, disassemble
Time-tested Waukesha Cherry-Burrell rotary pump; circumferential-piston operating principle
In the Waukesha Cherry-Burrell design, arc-shaped “pistons” (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.
FOR LOW VISCOSITY FLUIDS
Rotors, made of Waukesha “88” alloy, can be run with close clearance to the 316L stainless steel fluid head, without galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation. As a result, you achieve: high efficiency, good priming ability, metering capability and good flow control.
FOR HIGH VISCOSITY FLUIDS
The large fluid cavities of the rotors, plus the large, easy entry anti-cavitation ports, allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or
particles.
توضیحات:
Fluid
for food products
Operation
electric
Technology
piston
Mobility
stationary
Domain
industrial, for the food and beverage industry
Applications
metering, outlet, flow control
Material
stainless steel
Other characteristics
mechanical, large, flow, rotary, combined, seal, aseptic
Flow
6.8 m³/h, 27.3 m³/h, 59.1 m³/h, 81.8 m³/h(240.13973 ft³/h, 964.0904 ft³/h, 2,087.0968 ft³/h, 2,888.73974 ft³/h)
Pressure
15.5 bar(224.808 psi)
Fluid temperature
Max.: 149 °C(300.2 °F)Min.: -40 °C(-40 °F)
Length
342 mm(13 in)
Width
177 mm(6.97 in)
Height
211 mm(8.31 in)
