نام محصول:

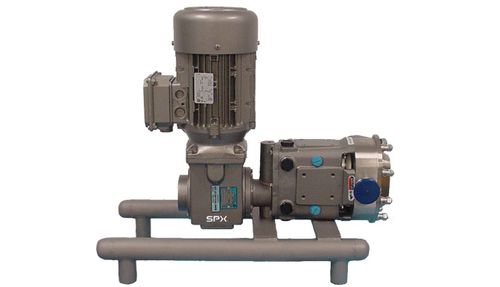

پمپ تولید مواد غذایی
نام انگلیسی:
Food product pump Tru-Fit™ Unversal
برند:
Waukesha Cherry-Burrell
مشخصات:
PUMPS / POSITIVE DISPLACEMENT PUMPS
Tru-Fit models are available for U1, U2, Lobe and Twin Screw (UTS) positive displacement pumps. Tru-Fit pump model advantages include: No shaft alignment necessary, no coupling guard required and ease of maintenance.
Benefits:
No shaft alignment necessary
No coupling guard required
Available for models 006 through 320 U1, U2, UL
Special base design enhances cleanability
Reduces overall length of complete unit by an average of 20-25%
Average of 10-20 gear ratios available per horsepower
NEMA or IEC frames available, right angle reducer also available for additional space savings
1/2 through 60 horsepower drive options available
Horizontal or vertical porting available
Separate oil sump for gear reducer and timing gears
Easy to maintain
Time-tested Waukesha Cherry-Burrell® rotary pump; circumferential-piston operating principle
In the Waukesha Cherry-Burrell design, arc-shaped “pistons” (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.
FOR LOW VISCOSITY FLUIDS
Rotors, made of Waukesha “88” alloy, can be run with close clearance to the 316L stainless steel fluid head, without galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation. As a result, you achieve: high efficiency, good priming ability, metering capability and good flow control.
توضیحات:
Fluid
for food products, oil
Operation
with electric motor
Priming
normal priming
Technology
gear
Mobility
stationary
Domain
industrial, for the food and beverage industry, for the pharmaceutical industry, for the cosmetics industry
Applications
transfer, metering, outlet, sump, flow control
Material
stainless steel
Fluid specification
for low-viscosity fluids
Other characteristics
mechanical, rotary, combined, vertical
Flow
Min.: 1.1 m³/h(38.84613 ft³/h)Max.: 102 m³/h(3,602.09601 ft³/h)
Pressure
10.3 bar, 13.8 bar, 15.5 bar(149.389 psi, 200.152 psi, 224.808 psi)
Fluid temperature
Min.: -40 °C(-40 °F)Max.: 149 °C(300.2 °F)
Length
Min.: 701 mm(28 in)Max.: 1,327 mm(52 in)
Width
Min.: 305 mm(12.01 in)Max.: 508 mm(20 in)
Height
Min.: 395 mm(15.55 in)Max.: 703 mm(27.68 in)
