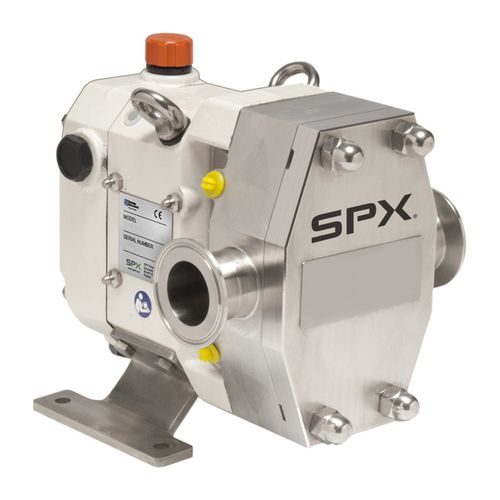

نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:
Food product pump MDL
برند:
Waukesha Cherry-Burrell
مشخصات:
PUMPS / POSITIVE DISPLACEMENT PUMPS
The Medium Duty Lobe series is available in 9 different sizes. Shaft seal options include single mechanical, quenched, double flushed. Feet for vertical or horizontal mounting.
FEATURES
Limited Release. Only available in APAC region. Contact SPX FLOW for more local sales information.
Operational Features
Smooth flow
Gentle product handling
Dry running ability with double seal
Handles low and high viscosity products
Simple maintenance
Hygienic design
Low sound level
CIP capability standard
Free draining pump housing
Unique rotor attachment
Robust construction
Process flexibility
Single mechanical seals standard. Optional double mechanical seals also available
Grease lubricated bearings for positive lubrication over speed, temperature
Installation Features
Bi-directional flow
Easy service and maintenance
Horizontal or vertical mounting
Easy to disassemble and reassemble
316L stainless steel pump body and cover
Versatile 4-way mounting of gear case, including vertical alignment of ports
Product Benefits
Pumps with flushed double mechanical seals can run dry indefinitely
Very low shear, product not damaged during pumping
No internal rotor contact
Large fluid cavities can pump liquids with large solids
No cross-contamination of lubricating oil into product zone due to unique gear case design
Pumps are energy efficient and easily cleaned, maintained and repaired
توضیحات:
Fluid
for food products, lubricating oil
Operation
electric
Technology
rotary lobe
Mobility
stationary
Domain
industrial
Applications
transfer, process, service, lubrication
Material
stainless steel
Protection level
robust
Other characteristics
flow, mechanical, standard, double, lubricated, large, dry, vertical, bi-directional, seal, shear
Flow
2,000 m³/h(70,629.33344 ft³/h)
Pressure
Max.: 145 psiMin.: 0 psi
