نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:
Food product pump C series
برند:
Waukesha Cherry-Burrell
مشخصات:

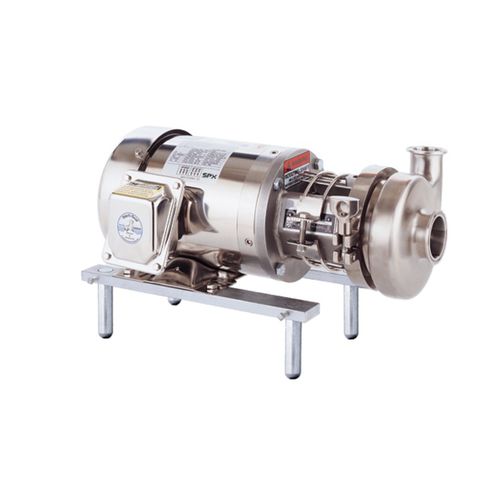

Versatile Waukesha C-Series Centrifugal Pumps from Waukesha Cherry-Burrell find broad application throughout sanitary and industrial processes. These rugged pumps accommodate a wide range of solids and liquids under a variety of flow conditions and deliver long service with minimum downtime.
Features
This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.
Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
Easy-cleaning, open type impeller delivers smooth pumping performance
Enlarged inlets available for larger suction lines
Standard CIP capability
Pump and parts are interchangeable with other C-Series brands
Long-life backplate and adapters – both backplate (with O-ring) and adapters are machined from solid bar stock stainless steel for optimum casing seal life and corrosion resistance.
Long-life components — all “wet end” components are 316L stainless steel.
3-A and CE certified
توضیحات:
Fluid
for food products
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
transfer, cleaning
Material
stainless steel
Other characteristics
suction, standard, heavy-duty, close-coupled, rugged, open, seal
Flow
Max.: 204 m³/h(7,204.19201 ft³/h)Min.: 7 m³/h(247.20267 ft³/h)
Head
Max.: 95 m(311’08” )Min.: 5 m(16’04” )
Fluid temperature
100 °C(212 °F)
Length
364 mm, 447 mm, 507 mm(14 in, 18 in, 20 in)
Height
135 mm, 139 mm, 152 mm(5.31 in, 5.47 in, 5.98 in)
