نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:

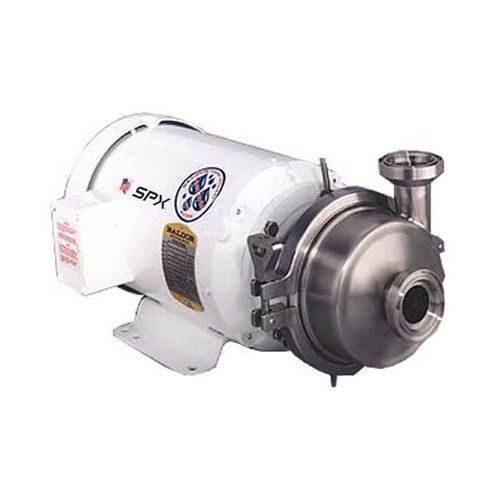

Food product pump Aseptic 200
برند:
Waukesha Cherry-Burrell
مشخصات:
Pumps / Centrifugal Pumps
Aseptic version of the 200 Series Heavy-Duty Sanitary Centrifugal Pumps. Sterile steam at every potential entry point blocks contaminated air or liquid.
Features
For aseptic flow applications, centrifugal models are available that retain the benefits of the Heavy-Duty Centrifugal but also include special design features that protect the product zone against contamination. Modifications assure that every potential entry point for contaminated air or liquid is bathed in sterile steam.
The JM motor, equipped with a stainless steel shaft, is standard. Aseptic models may be specified in either pedestal or close-coupled configuration.
Benefits
Full steam trace around pump cover, seal chamber and ferrules
An exclusive steam trace on the clamp itself
Compression fittings on each side of the head that feed steam for the ring around the back plate
Direct steam intrusion in the seal area
Siliconized graphite seal material
Holes in back plate between vanes equalize pressure and permit thorough cleaning
Pedestal or close-coupled configurations
3-A Certified
EHEDG Certified
CE Certified
ISO 9001 Certified
توضیحات:
Fluid
for food products, air
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
sanitary
Applications
transfer, feed
Material
stainless steel
Other characteristics
standard, heavy-duty, close-coupled, rugged, flow, seal, hydro-pneumatic, aseptic
Flow
Max.: 318 m³/h(11,230.06402 ft³/h)Min.: 22 m³/h(776.92267 ft³/h)
Head
Max.: 104 m(341’02” )Min.: 6 m(19’08” )
