نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:

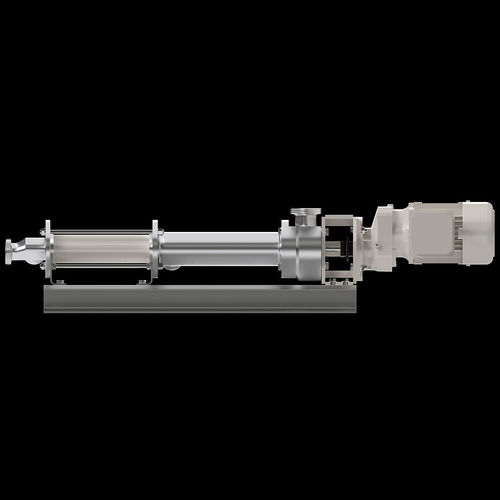

Food product pump BCFH series
برند:
Seepex
مشخصات:
The BCFH range was awarded EHEDG Type EL Class 1 certification, therefore meeting the highest standards for cleanliness and sterilization. The EHEDG in-place cleanability test confirmed the residue-free cleaning of the BCFH range.
for low to highly viscous media
Joint-free Flexrod design
Split suction casing with CFD-optimized inlet geometry
Conveying capacity: 90 l/h – 60 m3/h
Pressure: up to 24 bar
EHEDG Type EL Class 1 and 3-A Sanitary Standards (USA) certified
Easy, quick maintenance due to removable rotor connection and split suction casing
Residue-free cleaning with CFD-optimized inlet geometry
Reduced downtime of the production plant due to quick maintenance
CIP/COP/SIP: hygienically optimal cleaning and sterilization possible
توضیحات:
Fluid
for food products
Operation
electric
Technology
centrifugal
Domain
sanitary
Applications
cleaning, conveying
Flow
Max.: 60,000 l/h(2,118.88 us gal/h)Min.: 90 l/h(23.77548 us gal/h)
Pressure
24 bar(348.091 psi)
