نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:
Food product pump SLS series
برند:
MOUVEX
مشخصات:

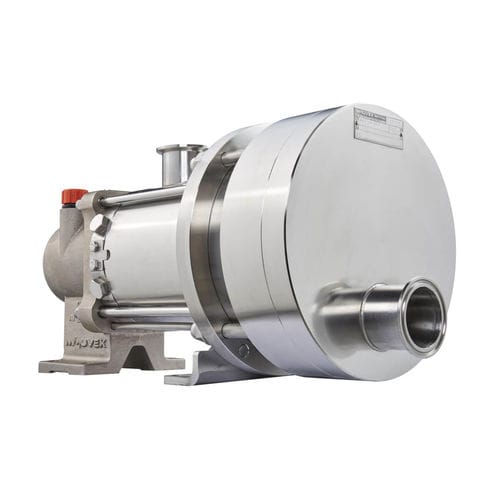

Mouvex® SLS Series Eccentric Disc Pumps have been designed for use in a wide range of pumping applications in the food, cosmetic and pharmaceutical industries, all of which require extremely hygienic operations. They feature a unique seal-less design with a double stainless-steel bellows that ensures durability, safety and product containment. The result is a pump that delivers very high suction and discharge pressures that allow it to self-prime and fully strip lines, a critical consideration when maximizing product recovery.
Seal-less Design
The Unique seal-less design features a double stainless steel bellows which ensures durability, safety and product containment. The SLS Series provides very high suction and discharge pressures which allows it to selfprime and fully strip lines, maximizing product recovery.
Run Dry Capability
The SLS can run dry for up to 5 minutes, and the self-compensating eccentric disc principle provides consistent flow rates over a long period of time. The flow rate is extremely accurate even at low speeds.
Dependable
There are fewer moving parts, which results in reduced maintenance and downtime.
Advantages
Eccentric disc design allows for consistent flow and improved energy savings
Extremely gentle, pulse-free flow to protect shear-sensitive products
Reduced maintenance with no mechanical seals or timing gears
Easy to install
Clean in place (CIP) and Sterilize in place (SIP) for the ultimate in convenience and cleanliness
توضیحات:
Fluid
for food products, air
Operation
electric
Priming
self-priming
Technology
eccentric disc
Mobility
stationary
Domain
industrial, for the pharmaceutical industry, for the food and beverage industry, for the cosmetics industry, sanitary
Applications
transfer, discharge, process, suction, recovery
Material
stainless steel
Other characteristics
double, with mechanical seals, dry, seal-less
Flow
Max.: 36 m³/h(1,271.328 ft³/h)Min.: 1 m³/h(35.31467 ft³/h)
Pressure
6 bar, 9 bar, 10 bar, 16 bar(87.023 psi, 130.534 psi, 145.038 psi, 232.06 psi)
Length
Max.: 906 mm(36 in)Min.: 445 mm(18 in)
Width
Max.: 395 mm(15.55 in)Min.: 175 mm(6.89 in)
Height
Max.: 422 mm(16.61 in)Min.: 225 mm(8.86 in)
Weight
Max.: 200 kg(440.92 lb)Min.: 19 kg(41.89 lb)
