نام محصول:
پمپ توربین احیا کننده MD-CX
نام انگلیسی:
Regenerative turbine pump MD-CX
برند:
SIMACO ELETTROMECCANICA
مشخصات:
Fluid
for industrial water, for cooling water, condensate, for coolant, for alkalis, oil, diathermic oil, for hydrogen
Operation
magnetic-drive
Technology
regenerative turbine
Mobility
stationary, mobile
Domain
industrial, for the pharmaceutical industry, for the food industry, agriculture, laboratory, for the construction industry, medical, for machine tools, for renewable energy, for the semiconductor industry, for data centers
Applications
high-temperature, transfer, for HPLC systems, for thermal power plants, purge, process, for automatic machines, cooling, filling, for washing, for industrial applications, for HPLC, adjustment, for air conditioning, for high-temperature applications, for printing machines, for cutting machine, for cooling systems, for solar collectors
Material
stainless steel
Fluid specification
for refrigerant fluids, for hot oil, for high-purity fluids, for supercritical fluids
Protection level
chemical-resistant
Other characteristics
compact, heavy-duty, high-performance, low-noise, for fluids, seal-less, bi-directional, for heating systems, cryogenic
Flow
Min.: 5 l/min
(1.32086 us gal/min)
Max.: 200 l/min
(52.83441 us gal/min)
Pressure
Min.: 1 bar
(14.504 psi)
Max.: 15 bar
(217.557 psi)
Head
Max.: 150 m
(492’01” )
Min.: 1 m
(3’03” )
Power
Max.: 2.95 kW
(4.01 hp)
Min.: 0.15 kW
(0.2 hp)
Fluid temperature
Max.: 350 °C
(662 °F)
Min.: -100 °C
(-148 °F)
Length
Min.: 233 mm
(9 in)
Max.: 492 mm
(19 in)
Width
Max.: 170 mm
(6.69 in)
Min.: 110 mm
(4.33 in)
Height
Max.: 211 mm
(8.31 in)
Min.: 146 mm
(5.75 in)
Weight
Max.: 28.8 kg
(63.49 lb)
Min.: 4.1 kg
(9.04 lb)
توضیحات:

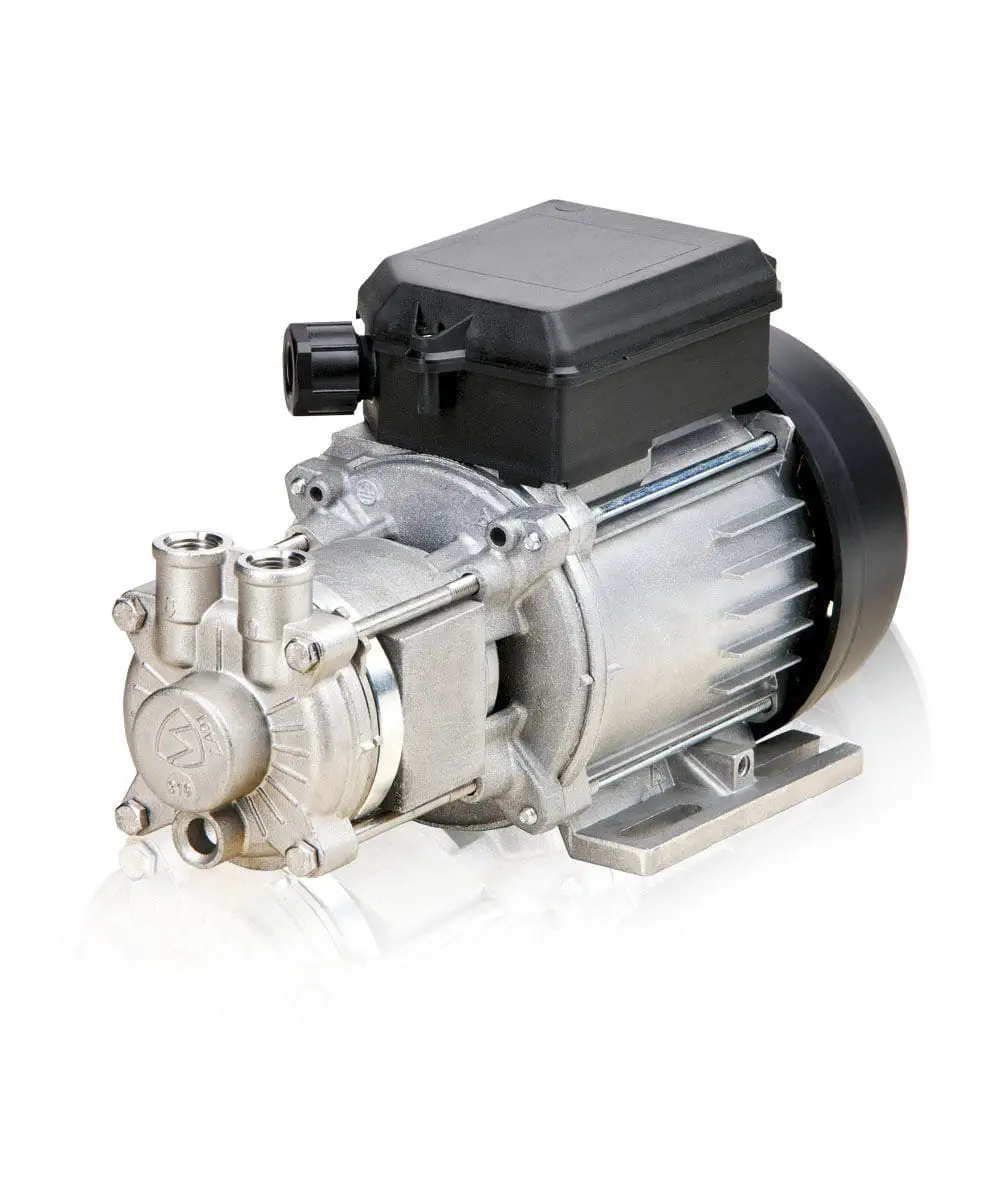

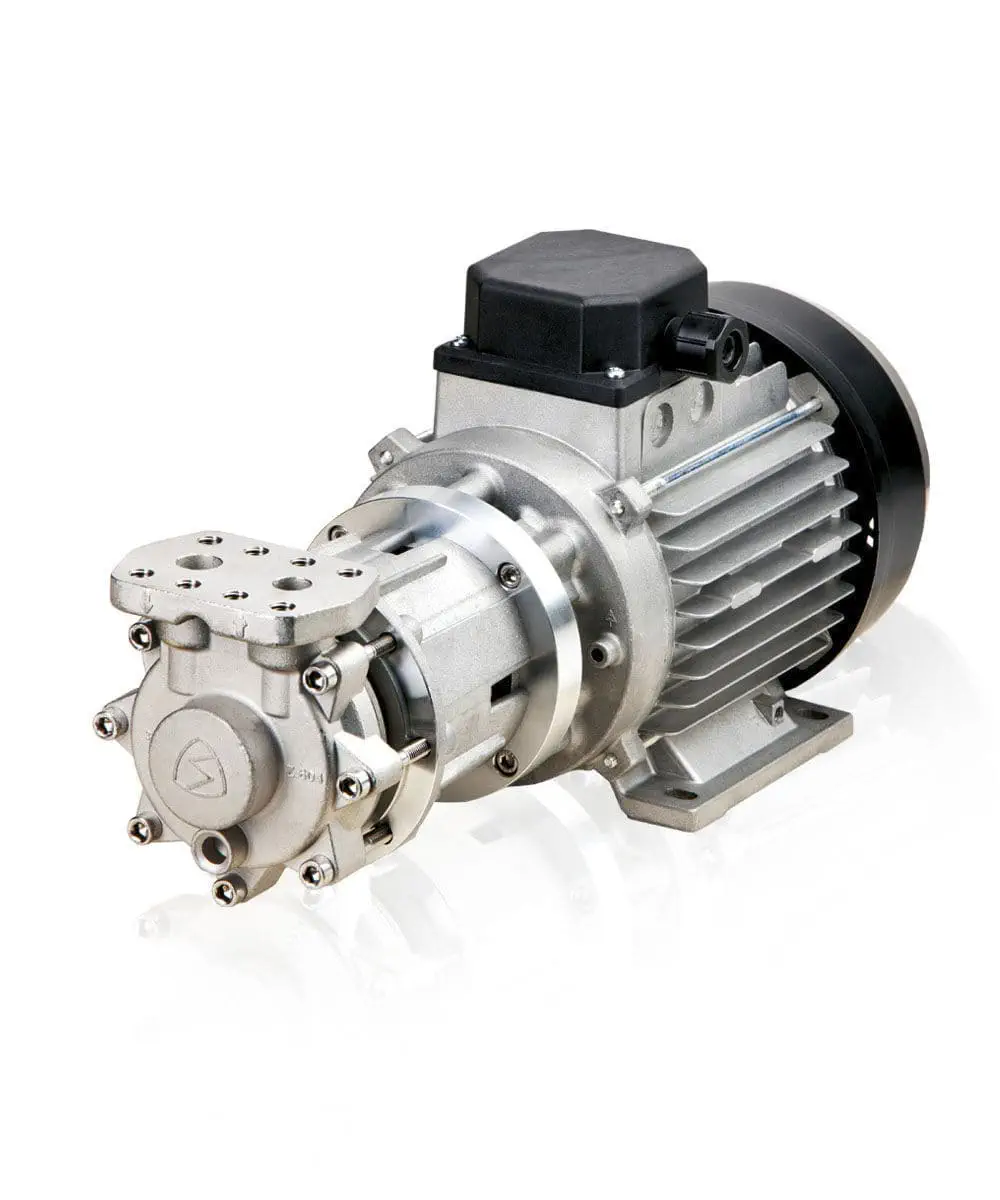

MD-CX
Magnetic driven regenerative turbine electric pumps
Hydraulic Performace
Stainless steel electric surface pumps with magnetic drive peripheral impeller, ideal for increasing or maintaining circulating pressures in closed circuit systems.
Operation with oils, clear and clean liquids without suspended solids or abrasives. Thanks to the innovative impeller drive system, the motion is transmitted via magnetic joints without using mechanical seals, thus virtually reducing the risk of leakage to zero with a consequent reduction in maintenance costs. The quality of materials and design choices make it an extremely versatile pump also for heavy-duty application areas and operating conditions. They are developed for operation with diathermic oil or pressurized water at high temperatures. They are however equally used in applications with moderately aggressive dilutions and generally where it is required to minimise the risks for man and machinery. Surface pumps specially dedicated to industrial sectors/applications.
