نام محصول:

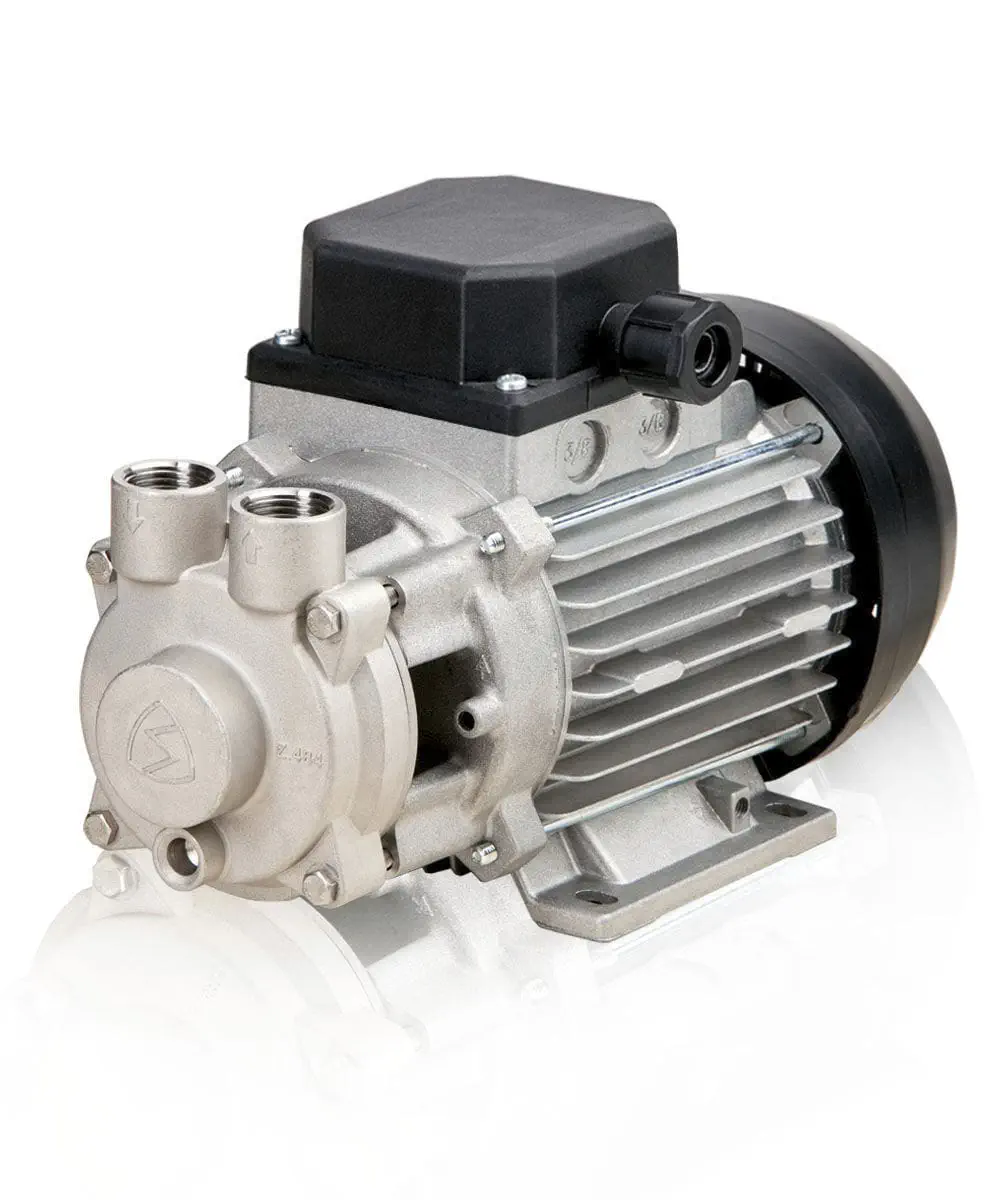

پمپ توربین احیا کننده سری CX
نام انگلیسی:
Regenerative turbine pump CX series
برند:
SIMACO ELETTROMECCANICA
مشخصات:
Fluid
water, condensate, for coolant
Operation
with electric motor
Technology
regenerative turbine
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, for water treatment, for agricultural applications, for the pharmaceutical industry, for the automotive industry, medical, for the textile industry, for renewable energy
Material
stainless steel
Other characteristics
mechanical, seal, multiphase
Flow
Max.: 110 l/min
(29.05893 us gal/min)
Min.: 5 l/min
(1.32086 us gal/min)
Pressure
Max.: 10 bar
(145.038 psi)
Min.: 1 bar
(14.504 psi)
Head
Max.: 100 m
(328’01” )
Min.: 0 m
(0’00” )
Power
Max.: 2.5 kW
(3.4 hp)
Min.: 0.14 kW
(0.19 hp)
Fluid temperature
Max.: 90 °C
(194 °F)
Min.: -20 °C
(-4 °F)
180 °C
(356 °F)
Length
Max.: 327 mm
(13 in)
Min.: 185 mm
(7 in)
Width
120 mm, 135 mm, 152 mm
(4.72 in, 5.31 in, 5.98 in)
Height
Max.: 227 mm
(8.94 in)
Min.: 147 mm
(5.79 in)
Weight
3.8 kg, 9.5 kg, 14.8 kg
(8.38 lb, 20.94 lb, 32.63 lb)
توضیحات:
Regenerative turbine electric pumps
Hydraulic Performace
Stainless steel mechanical seal electric surface pumps with peripheral impeller, ideal for increasing or maintaining circulating pressures at medium-low hydraulic flow rates in closed circuit systems.
Operation with clear and clean liquids without suspended solids or abrasives.
The choice of materials is oriented toward use with oils, demineralised water or slightly aggressive dilutions, and in all those areas where the use of virtually inert components is critical. Pumps specially dedicated to industrial sectors/applications. Extensive versatility of these peripheral centrifugal pumps, especially in the dual frequency version, with a wide selection of mechanical seals available on request.
