نام محصول:
پمپ بنزین
نام انگلیسی:
Gas pump N3 KP18
برند:
M&C TechGroup Germany GmbH
مشخصات:
– Diaphragm pump with housing
– Capacity at atmospheric pressure: max. 3 Nl/min
– Max. operating pressure range: 0.25 to 1.95 bar abs.
– Compact design
– Corrosion-resistant
– 100 % lubricant-free
– High level of gas tightness
– Power: 230 V
– Material of sample-contacting parts: PVDF, PTFE, FKM

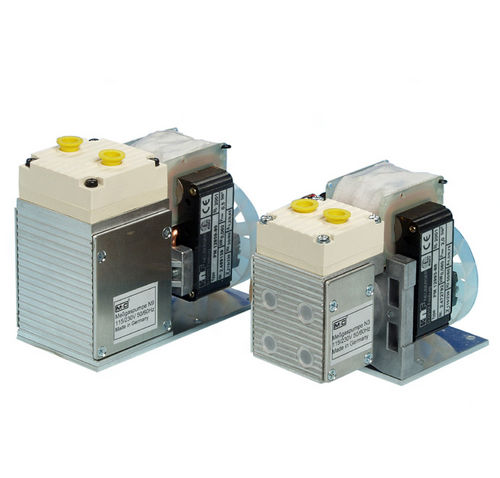

The compact diaphragm pumps type N3/5/9 are suitable for sampling air, gases and vapours in a temperature range . The construction and the pump capacity are adapted to the requirements of analytical technology.

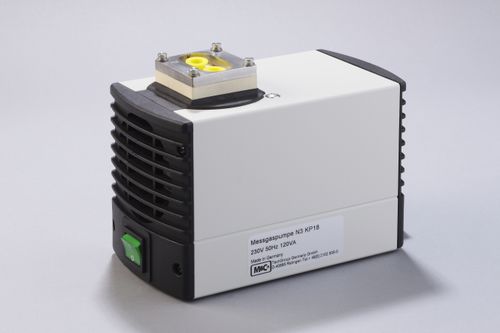

Diaphragm pump type N3KP18 with housing, connections: G 1/8″ f, material: PVDF, Viton®, power: 230 V/50 Hz
توضیحات:
Fluid
for gas
Operation
electric
Technology
diaphragm
Mobility
stationary
Applications
sampling
Material
PTFE, PVDF
Voltage
230 V
Other characteristics
compact
Flow
300 l/h(79.25162 us gal/h)
Pressure
Max.: 2.5 bar(36.259 psi)Min.: 0.25 bar(3.626 psi)
