نام محصول:
پمپ بنزین
نام انگلیسی:

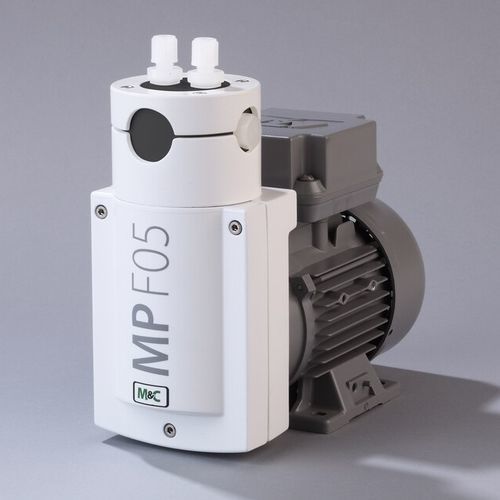

Gas pump MP-F05/R
برند:
M&C TechGroup Germany GmbH
مشخصات:
– Full PTFE bellows pump
– Pump head can be rotated in 90° steps and connected to the gas line from the top or side
– Max. capacity: approx. 5 Nl/min with a counter-pressure of ±50 mbar on the vacuum and pressure side
– Max. operating pressure range: 0.4 to 2.5 bar abs.
– Corrosion-resistant
– 100 % lubricant-free
– High level of gas tightness
– Long service life
– Power: 230 V/50 Hz, optionally 230 V/60 Hz
– Material of sample-contacting parts: PTFE, PFA, FEP
– Optionally: upper part of the pump head out of stainless steel
The bellows pumps type MP-F are suitable for corrosive gases. Their performance and construction are specially geared to meet the requirements of analytical technology.
Analytical bellows sample pump MP‑F05/R with needle valve, material: PTFE, capacity: 320 Nl/h with counter pressure of ‑/+ 50 mbar on the vacuum and pressure side, connections: G 1/4″ f, 230 V, 50/60 Hz, IP54
توضیحات:
Fluid
for gas
Operation
electric
Technology
bellows
Mobility
stationary
Domain
industrial
Applications
metering
Material
PTFE, PFA
Voltage
230 V
Protection level
IP54
Other characteristics
needle shut-off
Flow
320 l/h, 600 l/h(84.53506 us gal/h, 158.50323 us gal/h)
Pressure
Max.: 2.5 bar(36.259 psi)Min.: 0.4 bar(5.802 psi)
Power
65 W(0.09 hp)
