نام محصول:
پمپ برای برنامه های پر فشار
نام انگلیسی:
Pump for high-pressure applications BOSP
برند:
Wenzhou BOAO Mechanical Manufacturing Co.,Ltd.
مشخصات:

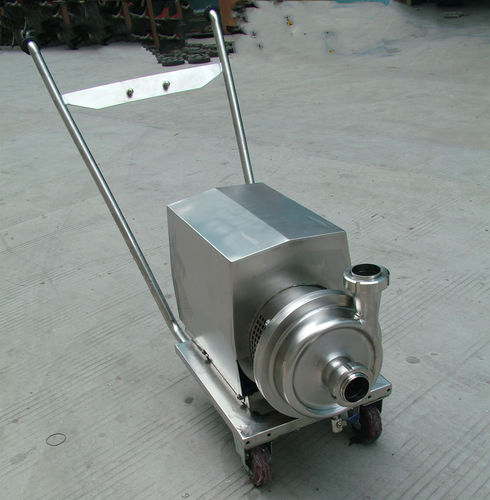

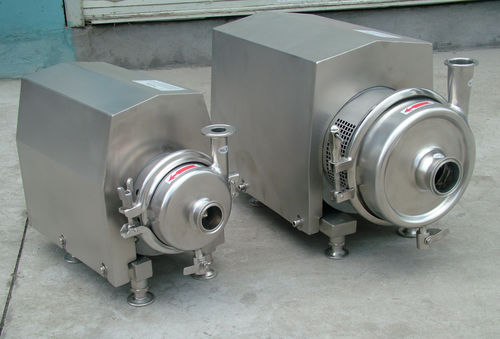

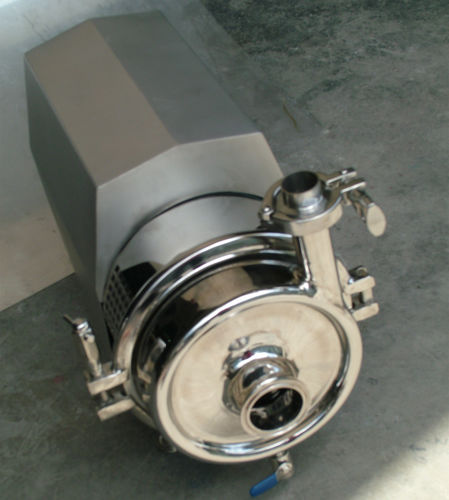

BOGP high pressure Centrifugal pump is designed for the process which requested for low flow rate but high transfer head (pressure).
Applications
BOGP centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Operating principle
Housed inside the casing, the impeller rotates in conjunction with the pump shaft .With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
Due to the special design of the pump casing and impeller ,the BOGP centrifugal pump has much higher pressure than standard centrifugal pump.
Design and features
High pressure and head.
Different connections standard: DIN, SMS, JIS, ISO
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Pump certified according to 3A sanitary standards.
Very robust stainless steel cast lantern.
Pump support from AISI 304.
Options
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Gaskets in FPM (Viton? and PTFE.
Connections: Clamp, SMS, RJT, etc.
Motors with additional protection.(movable, Explosion proof)
Trolley and/or Switchboard.
توضیحات:
Fluid
beverage, for dairy products, beer
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
for the food and beverage industry, for the pharmaceutical industry, sanitary
Applications
process, for high-pressure applications
Material
stainless steel
Protection level
robust
Other characteristics
with mechanical seals, with open impeller
Flow
Max.: 220,000 m³/h(7,769,226.67873 ft³/h)Min.: 500 m³/h(17,657.33336 ft³/h)
