نام محصول:
پمپ با کنترلر با سرعت متغیر سری 4HS
نام انگلیسی:
Pump with variable-speed controller 4HS series
برند:
NASTEC
مشخصات:
Fluid
water
Operation
with asynchronous motor
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
irrigation, control, control
Material
stainless steel
Voltage
24 V
Other characteristics
high-efficiency, multi-stage, built-in, dry, variable-speed, for well, integrated-drive, multicellular, with variable-speed controller
Flow
Max.: 11 m³/h
(388.46133 ft³/h)
Min.: 0 m³/h
(0 ft³/h)
Pressure
Max.: 16 bar
(232.06 psi)
Min.: 0 bar
(0 psi)
Head
Max.: 120 m
(393’08” )
Min.: 47 m
(154’02” )
Power
1.8 kW, 3.2 kW
(2.45 hp, 4.35 hp)
Fluid temperature
50 °C
(122 °F)
Weight
Max.: 23.2 kg
(51.15 lb)
Min.: 19.7 kg
(43.43 lb)
توضیحات

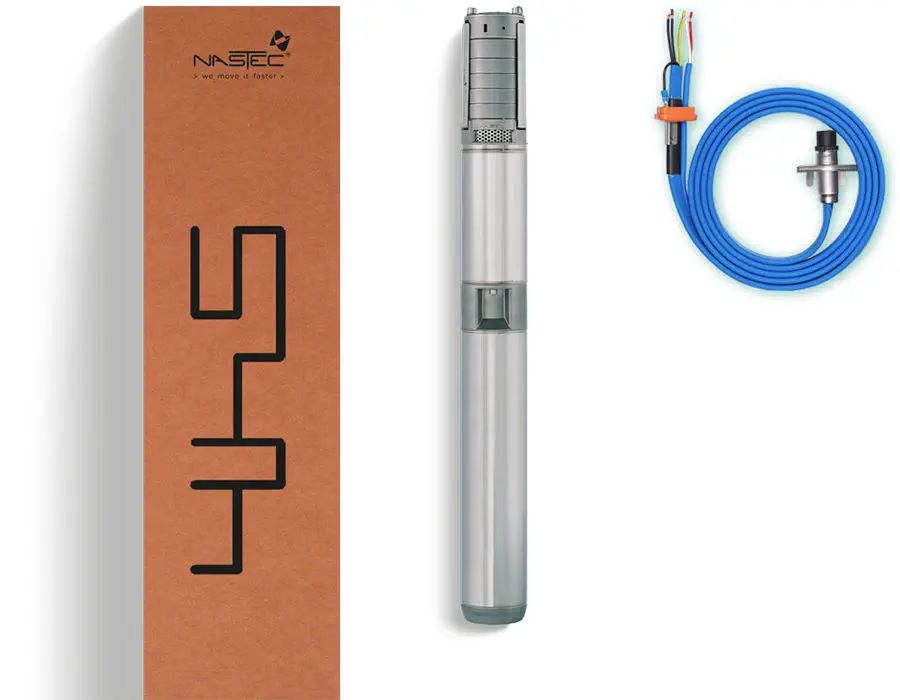

4HS is a range of 4” electric submersible pumps for well applications, featuring:
– Three-phase, water-filled, permanent magnet synchronous motor with encapsulated resin stator, fully constructed of AISI 304 stainless steel.

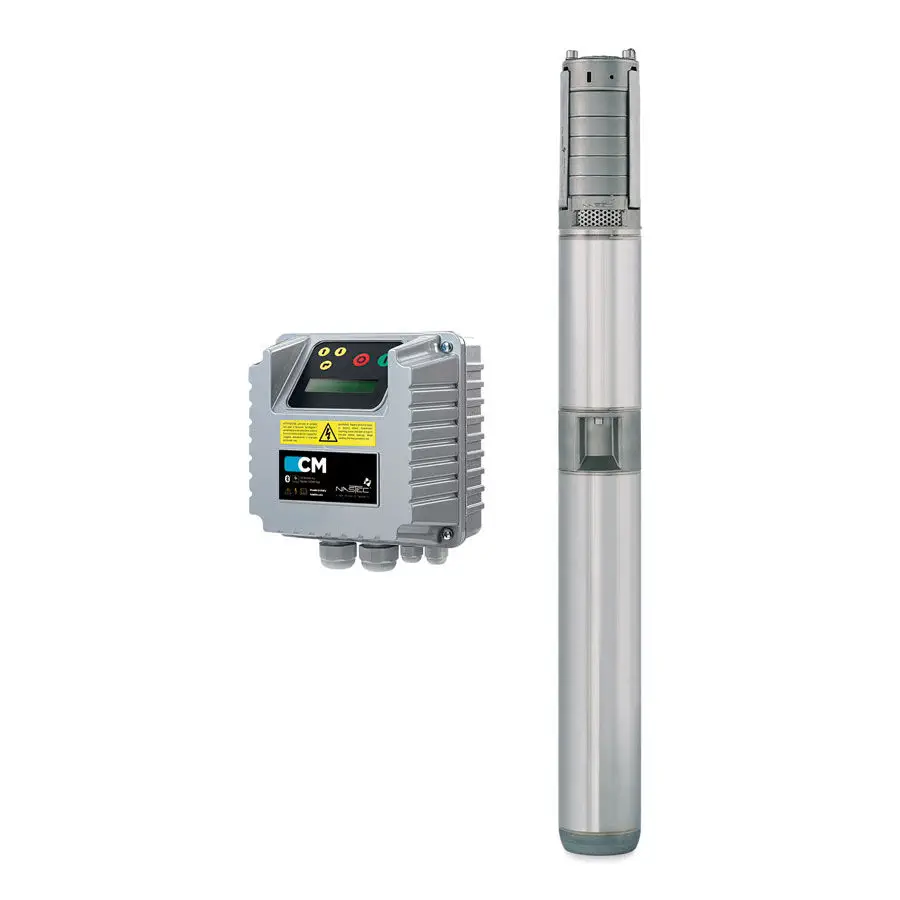

– Built-in integrated inverter controlled by CM control module.
– Multistage pump made of AISI 304 stainless steel.
An inverter allows 4HS to:
– Change pump speed to maintain set-pressure regardless of water demand. Consequently the pump is operated only when and as needed without wasting energy, thereby extending pump life.
– Starts and stops pump gently, thus reducing peak absorption, mechanical stress.
– Protects pump and drive from overload, undervoltage, surges, dry running and any abnormal conditions.
Integrated on-board inverter avoids the use of expensive filters and shielded cables reducing electromagnetic emissions to a minimum.
4HS product range meets the needs of commercial and residential markets for water supply, water pressurisation and irrigation. Compared to conventional solutions, 4HS offers:
– Energy-saving operation.
– Quick and simplified application.
– System reliability.
Construction characteristics and use of specific materials allow 4HS to be suitable for drinking water applications.
