نام محصول:
پمپ باتری
نام انگلیسی:

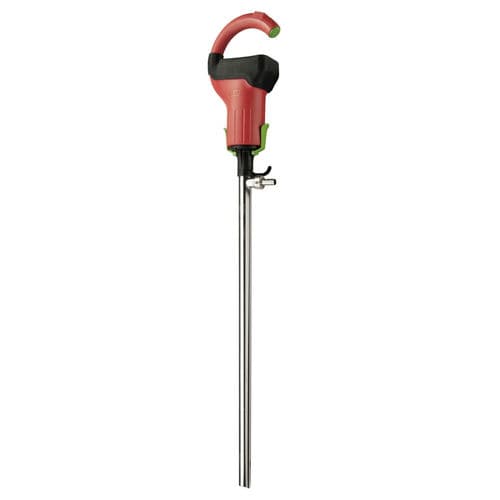

Battery-powered pump COMBIFLUX FP 314
برند:
FLUX-GERÄTE GMBH
مشخصات:
The small battery drum pump COMBIFLUX FP 314 is particularly suitable for pumping comparatively small quantities from containers such as cans or up to 200 litre drums. With IP 44, it is protected against splash water and therefore also ideally suited for outdoor use. The small diameter of the outer tube allows pumping even out of narrow openings. The sealless COMBIFLUX FP 314 is designed on a modular basis and can either be operated with the commutator motor FEM 3070 or the battery motor FBM-B 3100. This way several pumps can be operated in series with one motor. The intelligent cooling concept of the motor with double-walled housing ensures optimum air circulation and protects against the penetration of aggressive vapors.
Technical data:
Viscosity: min. 1 mPas – max. 250 mPas1
Outer tube diameter: min. 25 mm2 – max. 32 mm2
Immersion length: 500, 700, 1000, 1200
Materials outer tube: Polypropylene, Polyvinylidene fluoride, Stainless steel
Media / Fluids: Acids, Alkalis, Aqueous salt solutions
Seal: sealless
Container: 200 l drums, Small containers, Hobbocks
Product attributes
► Connection motor and pump via quick-action coupling
► Small outer tube diameter
► Holding hook for hand nozzles at the pump discharge
► Sealless in the liquid area
► Low weight
► Motor easy to remove
► Several pumps can be operated in series with one motor
► Also suitable for filling smaller quantities
Benefits
Can transfer from narrow-necked and containers difficult to access
Minimal force required to change drums
Hand nozzle always quickly at hand due to holding hook
توضیحات:
Fluid
water, acid, for alkalis
Operation
electric
Priming
semi-submersible
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial, laboratory
Applications
transfer, drum, filling, IBC, for containers
Material
stainless steel, polypropylene, PVDF
Protection level
immersion
Other characteristics
small, modular, mobile, battery-powered, low-capacity
Flow
Min.: 12 l/min(3.17006 us gal/min)Max.: 60 l/min(15.85032 us gal/min)
Head
8.5 m(27’10” )
