نام محصول:
پمپ اندازه گیری
نام انگلیسی:
Metering pump KM2
برند:
Albin Pump
مشخصات:

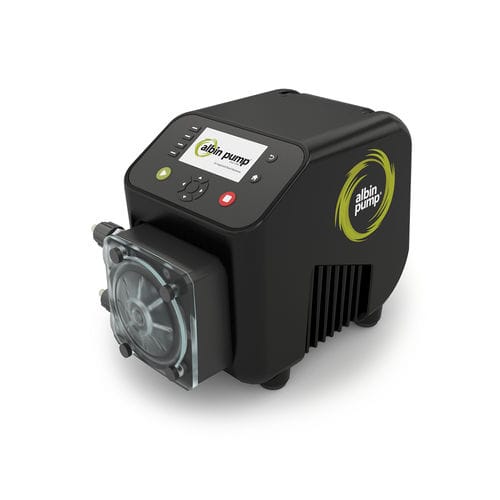

PERISTALTIC METERING PUMP (KM2) – ALBIN PUMP
Specifications:
Flow rate: up to 65 l/h (17 gph)
Discharge pressure: up to 7.6 bar (110 psi)
Turndown ratio: 10,000:1
Maximum suction lift: – 9 m
Control options: Manual, 4-20 mA, SCADA, Modbus
4.33” color LCD display
Optical tube leak detection standard
Onboard run timer for predictive maintenance
Several tube materials suitable for the huge majority of fluids, chemicals and applications
Albin Pump KM Series cased-drive tubing pumps provide process confidence and offer cost savings through:
– Next generation safety features:
x A patent-pending offset rotor assembly releases tube compression during maintenance
x Offset rotor allows drain and flush of tube prior to removal
x Tube changes do not require users to manipulate the tube while rotor is turning
-Tool-free tube change
-Easy and intuitive navigation: No need for complex, multi-step menu each time a mode change is required
-A best-in-class user experience featuring one-button switching between local and remote operation
– USB port for downloading log files, uploading software updates and firmware upgrades
– Each rotation gives the same displacement which provides excellent metering characteristic. Low shear
-Pump will not vapor lock or air bind
-Fully self-priming
-No moving parts in liquid path: tubing is the only wetted item
-Damage-free continuous dry running
-No check balls/check valves
-Reversible flow
-Albin Service Point: Unique QR Code to get personalized product support, easily access product documentation, quickly request quote for spare parts specific to your KM pump and contact our teams and certified partners.
توضیحات:
Fluid
water, for chemicals, for food products
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
stationary, mobile
Domain
laboratory, industrial, chemistry, for water treatment, for the textile industry, for the pharmaceutical industry, for the food industry, agriculture, for the metallurgical industry, for the paper industry, for the cosmetics industry, for the steel industry, for the automotive industry, for the semiconductor industry, sanitary
Applications
process, transfer, proportional dosage, for precision applications, discharge, metering, feed, filling, volumetric dispensing, screw for oenological processes, treatment, for low-pressure applications, chemical process, suction, sampling, for industrial applications, injection, test, surface treatment, for harsh environments
Material
aluminum, thermoplastic, polycarbonate
Fluid specification
for viscous fluids, for aggressive media, for abrasive fluids, for low-viscosity fluids, for solids-laden fluids, for corrosive fluids, for high-viscosity fluids, for mineral oil, for hazardous fluids, dye, flavouring
Voltage
110 V, 115 V
Protection level
chemical-resistant, abrasion-resistant, anti-corrosion, rugged, for harsh environments, IP66
Other characteristics
OEM, compact, with variable-speed controller, digital, suction, small, adjustable, low-noise, in-line, low-pressure, integrated-drive, medium-flow, for integration, for fluids, transportable, low-flow, waterproof, low-vibration, variable-flow, programmable, skid-mounted, seal-less, adjustable-flow, easy tube loading
Flow
Max.: 17.1 m³/s(603.8808 ft³/s)Min.: 1.7 m³/s(60.03493 ft³/s)
Pressure
3.4 bar, 4.5 bar, 6.9 bar, 7.6 bar(49.313 psi, 65.267 psi, 100.076 psi, 110.229 psi)
Power
0.18 kW(0.24 hp)
Fluid temperature
80 °C(176 °F)
Length
361 mm(14 in)
Width
206 mm(8.11 in)
Height
246 mm(9.69 in)
Weight
13 kg(28.66 lb)
