نام محصول:
پمپ انتقال
نام انگلیسی:

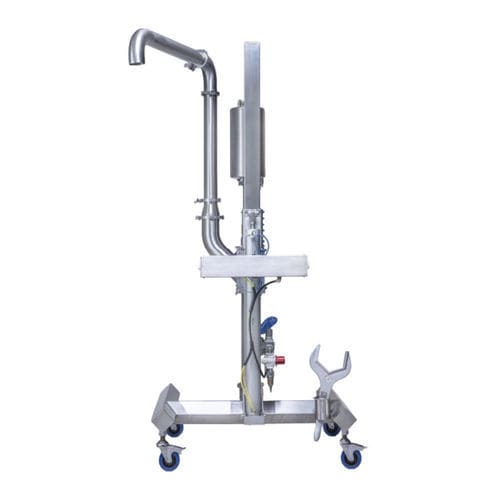

Transfer pump V200P
برند:
Turbo Systems
مشخصات:
• Requires only food compatible lubricants on product handling components.
• Ergonomically placed controls
• Easy to use
• Available with a variety of flexible and fixed pipework
• Designed to accept Euro Tubs
• Lockable castors to ensure operational stability
• Cleaning and changeover procedures require no tools
• Low noise emissions
TECHNICAL SPECIFICATION
DIMENSIONS
L1300 x W1200 x H2170 x mm with stand (maximum height)
OPERATING TEMPERATURE
5c – 95c
CONTINUOUS SOUND PRESSURE
Level at 1m distance > 80.0dB
COMPRESSED AIR SUPPLY PRESSURE
4 – 6 bar
AIR CONSUMPTION
100m stroke deposit at 30 per minute would = ((0.669 x 10) + 0.81 + 0.315) x 30 = 234.45 litres/ min or 8.23cfm
WEIGHT
115kg
RELATIVE HUMIDITY
45% – 65%
ELECTRICAL SUPPLY
16a 240v single phase. K9024 plug and trailing lead
COMPRESSED AIR QUALITY
Sterile clean & dry air with dew point 2c
توضیحات:
Fluid
for food products
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
mobile
Domain
for the food industry
Applications
transfer
Material
stainless steel
Voltage
240 V
Pressure
Max.: 6 bar(87.023 psi)Min.: 4 bar(58.015 psi)
Length
1,300 mm(51 in)
Width
1,200 mm(47.24 in)
Height
2,170 mm(85.43 in)
Weight
115 kg(253.53 lb)
