نام محصول:

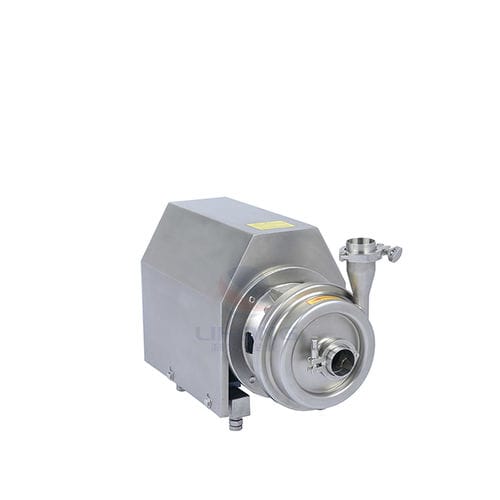

پمپ الکل
نام انگلیسی:
Alcohol pump
برند:
Wenzhou Lihong Machinery TECHNOLOGY Co., LTD
مشخصات:
Sanitary centrifugal pump application:
· Drugs: infusion, distilled water, high purity water, particles (3-6 mm) Chinese medicine liquid, leaching liquid.
· Cosmetics: dyes, alcohol, essential oil.
· Drink: Alcohol, liquor, beer, malt, fermentation, juice drink, with particle beverage.
· Dairy: Whey, Cream, Milk, Sugar
· Others: Candy Industry, Roasting, Chemical Fields, etc.
Selection instructions:
· Traffic: The intermediate section in the performance curve table is suitable.
· Working environment and media: Determine if explosion is needed.
· Working conditions: The hygienic centrifugal pump is high and low levels of water levels, non-self-suction. (Self-suction type selected self-suction pump)
· Pump body: According to the media requirements 316L and 304.
· Sealing material: Standard rubber seal is silicone rubber, select fluorofluoro rubber, three yuan ethylene, polytetrafluoro, butter according to media.
توضیحات:
Fluid
water, alcohol, for food products
Operation
electric
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial, chemical, for the cosmetics industry, sanitary
Applications
suction, fermentation, high-purity
Material
stainless steel
Voltage
380 V
Other characteristics
standard, high-efficiency
Flow
Min.: 2 m³/h(70.62933 ft³/h)Max.: 80 m³/h(2,825.17334 ft³/h)
Head
Min.: 12 m(39’04” )Max.: 40 m(131’02” )
Power
Min.: 0.55 kW(0.75 hp)Max.: 18.5 kW(25.15 hp)
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 133 °C(271.4 °F)
Input diameter
Min.: 32 mm(1.26 in)Max.: 102 mm(4.016 in)
Output diameter
Min.: 25 mm(0.984 in)Max.: 89 mm(3.504 in)
