نام محصول:

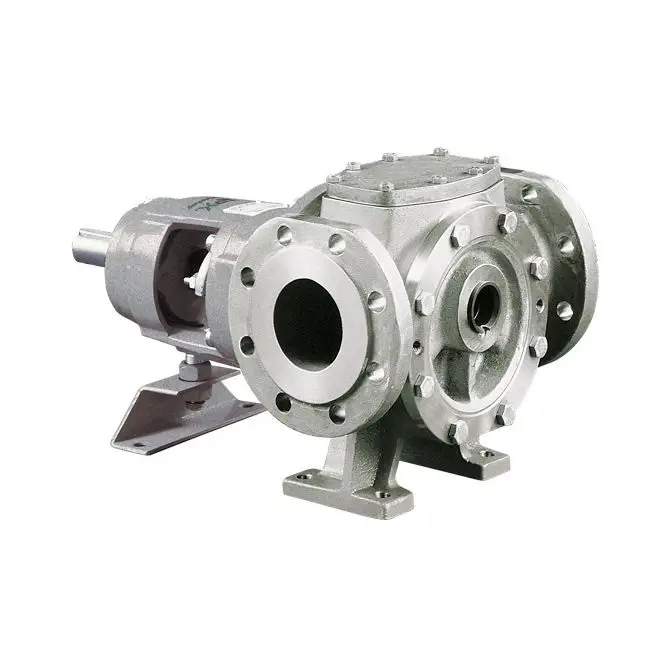

پمپ اسید TopGear H
نام انگلیسی:
Acid pump TopGear H
برند:
Johnson Pump
مشخصات:
Fluid
acid, paint, for adhesives, for ink, for bitumen and asphalt
Technology
internal-gear
Mobility
stationary
Domain
chemistry, for pharmaceutical applications
Applications
cooling
Material
stainless steel, cast iron, steel
Fluid specification
for mineral oil
Protection level
with integrated safety
Other characteristics
adjustable, compact, suction, mechanical, heavy-duty, with mechanical seals, flange-mounted, modular, axial, rugged, double-jacketed
Flow
Min.: 0 m³/h
(0 ft³/h)
Max.: 130 m³/h
(4,590.90667 ft³/h)
Pressure
Min.: 0 bar
(0 psi)
Max.: 16 bar
(232.06 psi)
Fluid temperature
300 °C
(572 °F)
توضیحات:
TopGear H-seriesis available in nine different sizes. The modular design gives a wide range of possibilities. Shaft seal options include single and double mechanical seals as well as packed gland and cartridge seals. Baseplate-mounted.Heating and cooling jackets are available for pump cover and around shaft seal. Single or double safety relief valves are available built-on. Connections from 32 to 150 mm.
ATEX Certified
CE Certified
