نام محصول:
پمپ اسید MINIFLUX
نام انگلیسی:
Acid pump MINIFLUX
برند:
FLUX-GERÄTE GMBH
مشخصات:
Fluid
acid, for solvents, for bases, fuel
Operation
electric
Technology
impeller
Mobility
stationary
Domain
industrial, for the chemical industry, for the pharmaceutical industry, for the petrochemical industry, agriculture, for the cosmetics industry
Applications
transfer, drain, IBC, for containers
Material
stainless steel
Other characteristics
with mechanical seals, portable, small-size, vertical
Flow
60 l/min
(15.85032 us gal/min)
Head
9 m
(29’06” )
توضیحات:

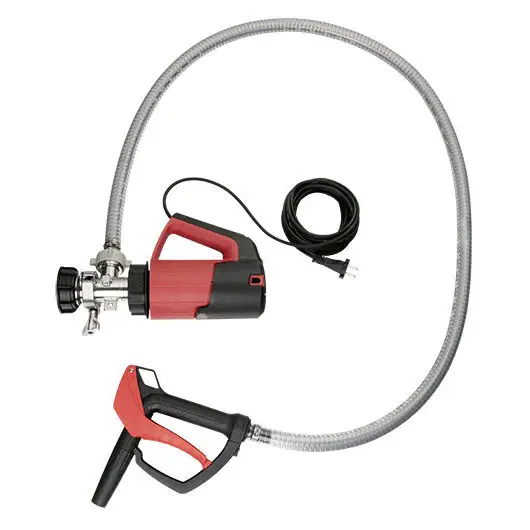

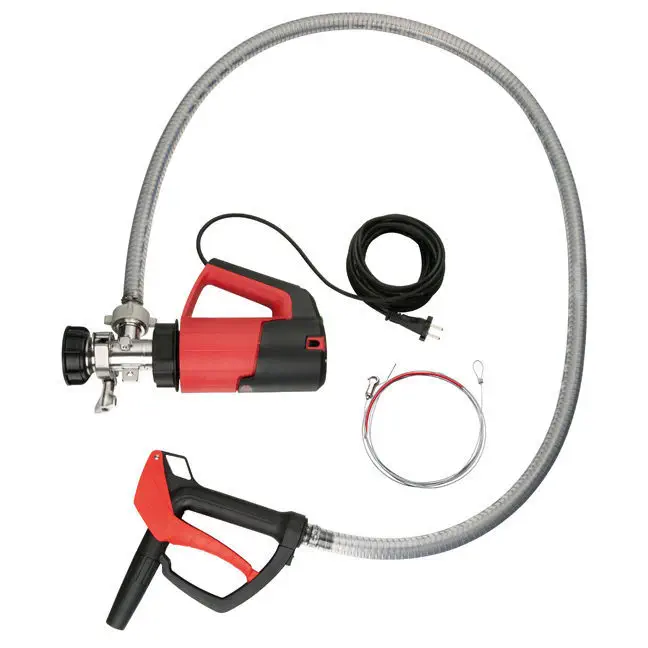

The pump-kit MINIFLUX is designed for emptying IBCs via their floor-level outlet. Designed as an alternative to a vertical pump, the MINIFLUX can be used when an IBC is not accessible from the top. It is suitable for applications when gravity draining via the outlet tap is insufficient e.g. rapid dispensing or transfer to another container in a higher location. Power can ideally be provided by a commutator or compressed air motor.
Technical data:
► Viscosity: min. 1 mPas – max. 1000 mPas
► Outer tube diameter: max. 41 mm
► Materials outer tube: Stainless steel
► Media / Fluids: Petroleum products, Highly flammable media, Solvents, Aqueous salt solutions
► Seal: with mechanical seal
► Container: 1000 l IBC, Container with floor drain
Product attributes
► For pumping out of IBCs directly from the outlet (with standard S60 x 6 thread)
► Simple connection of the pump to the outlet by union nut
► Compact design
► Can be dismantled into two parts via clamp
► Low overall weight of 1.2 kg
► No need to mount pump to top of container
► Does not require access to the container from above
► Ideally combined with commutator motor or compressed-air motor
Benefits
► Can be used where ceilings are low
► Allows pumping directly from floor-level outlets, even when containers are stacked
► Significantly higher flow rate and pressure compared to draining by gravity
► Minimal space requirement
► Simple disconnection from IBC with union nut
► Delivery against closed valve (e.g. hand nozzle, flap valve etc.) possible
