نام محصول:

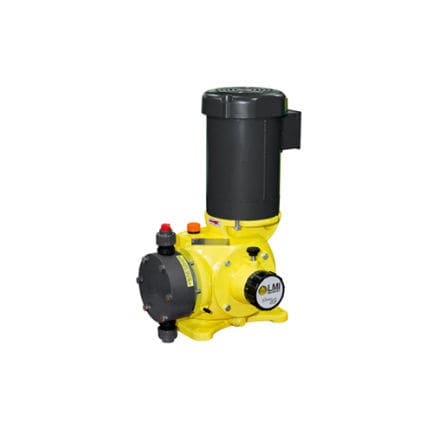

پمپ اسیدی
نام انگلیسی:
Acid pump G
برند:
LMI Milton Roy
مشخصات:
A rugged design for the toughest challenge, now with NSF/ANSI 61 and 372 certification.

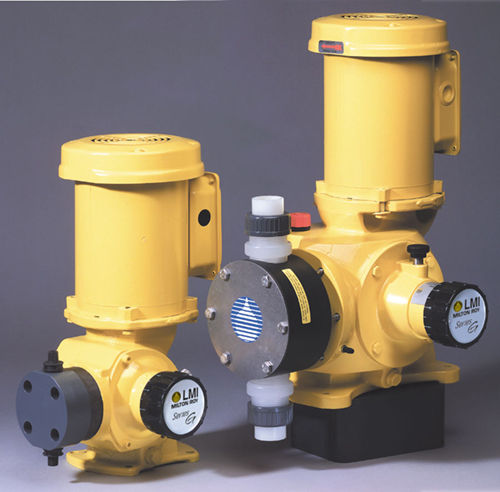

Available in two motor driven models – the SD and the SG – the Series G Metering Pumps feature rugged aluminum construction specifically engineered to handle higher output applications in harsh environments. Certified with NSF / ANSI 61 and 372 for municipal compliance and safety assurance, the Series G is the right choice when choosing a pump for water treatment applications, like coagulation and flocculation.
By combining a heavy-duty industrial drive with state-of-the-art design, the Series G offers a mechanically actuated diaphragm that provides smooth output with reduced potential for system shock and hydraulic oil contamination.
External speed control, stainless steel fasteners and NSF certifications make this powerhouse pump perfect for water treatment applications.
Compared to solenoid pumps or lost motion designs, the Series G pumps offer a robust, metallic worm gear drive along with an industrial duty variable eccentric stroke adjustment mechanism to yield a 10 to 1 turn down ration with smooth velocity profiles
This pump is designed to last. The PTFE, high performance diaphragm design eliminates the stresses inherent in most designs – plus, all gear components operate in an oil bath for long life.
Available in three frame sizes, the Series G pumps are able to accommodate a wide selection of liquid ends
Manual controls allow for precise stroke length adjustment
توضیحات:
Fluid
acid, slurry, oil
Operation
electric
Technology
diaphragm
Mobility
stationary
Domain
industrial, for water treatment
Applications
metering, for control, adjustment
Material
stainless steel, aluminum
Protection level
robust
Other characteristics
heavy-duty, rugged, rugged, actuated
Flow
Max.: 300 us gal/h(1,135.62354 l/h)Min.: 0.7 us gal/h(2.64979 l/h)
Pressure
Max.: 175 psiMin.: 50 psi
