نام محصول:
پمپ اسیدی
نام انگلیسی:

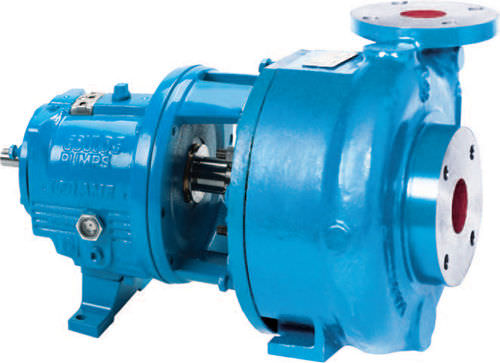

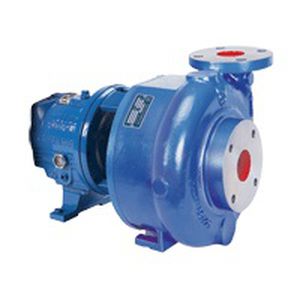

Acid pump CV 3196 i-FRAME
برند:
Goulds Pumps
مشخصات:
The CV 3196 i-FRAME is designed specifically to provide superior performance for process services containing solids. Goulds concentric volute casing with recessed open impeller provides non-clogging capability with minimal solids degradation. In addition, the CV 3196 i-FRAME can handle liquids entrained with air or gas.
Design Features
Extended Pump Life

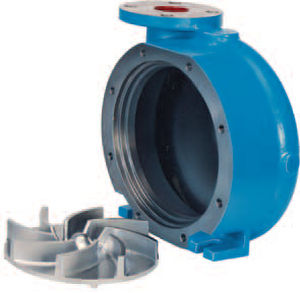

Concentric volute casing for non-clog, minimum wear
Recessed impeller for minimum solids degradation
Patented TaperBore™ / BigBore™ seal chambers
i-FRAME power ends
Ease of Maintenance
Back pull-out design
Most parts interchangeable with Goulds Model 3196 i-FRAME
External impeller adjustment
Easy retrofit
Safety
ANSI B15.1 coupling guard
Ductile iron frame adapter
Applications
Filter slurries
Latex
Polystyrene beads
Crystal suspensions
Screen rejects
Hydropulper pump
Sodium chlorate slurry
Fruit and vegetable suspensions
Dye liquor
Fibrous wastewater
Long fibre white water
Primary cleaner pump
توضیحات:
Fluid
acid, air
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
handling, process, chemical process
Fluid specification
dye
Other characteristics
filter, seal, ANSI
Flow
610 m³/h(21,541.9467 ft³/h)
Pressure
1,965,000 Pa(284.999 psi)
Head
134 m(439’07” )
Fluid temperature
260 °C(500 °F)
Weight
Max.: 219 kg(482.81 lb)Min.: 65 kg(143.3 lb)
