نام محصول:
پمپ اسیدی
نام انگلیسی:
Acid pump CP series
برند:
CSF Inox Spa
مشخصات:

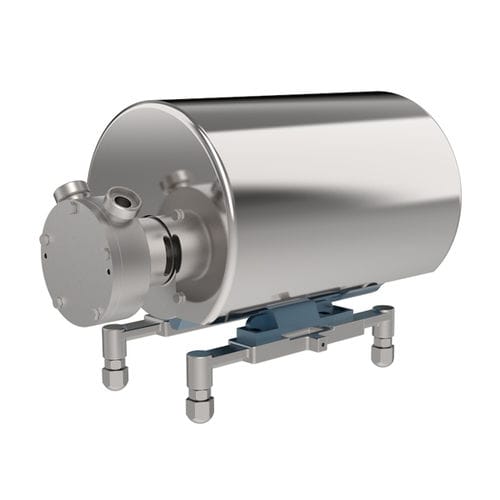

Thanks to the special design of the body and impeller and the absence of pulsations, these single-block peripheral impeller pumps are widely used for dosing liquids, in laboratory micro-systems, in-line measuring systems, spray systems and applications where medium-high heads and low flow rates are required. They are also used to transfer clean, non-abrasive liquids with no suspended solids with a maximum viscosity of 250 cps in the food, dairy, beverages and syrups, oil and liqueur industries, in CIP process or in the chemical sector with acid and base solutions as well as in the cosmetic and pharmaceutical sectors. Made from laminated AISI 316L steel they have excellent levels of surface finish.
توضیحات:
Fluid
acid, oil
Priming
self-priming
Technology
impeller
Mobility
stationary
Domain
industrial, chemical, for the food and beverage industry, for the pharmaceutical industry, laboratory, for the cosmetics industry
Applications
transfer, dosing, process, spray
Other characteristics
flow, in-line
Flow
Max.: 7 m³/h(247.20267 ft³/h)Min.: 0 m³/h(0 ft³/h)
Head
Max.: 120 m(393’08” )Min.: 0 m(0’00” )
Power
Max.: 4 kW(5.44 hp)Min.: 1.1 kW(1.5 hp)
Fluid temperature
Max.: 100 °C(212 °F)Min.: -10 °C(14 °F)
Length
Max.: 510 mm(20 in)Min.: 395 mm(16 in)
Width
170 mm, 193 mm, 302.5 mm(6.69 in, 7.6 in, 11.91 in)
Height
361 mm, 371 mm(14.21 in, 14.61 in)
