نام محصول:
پمپ اب
نام انگلیسی:

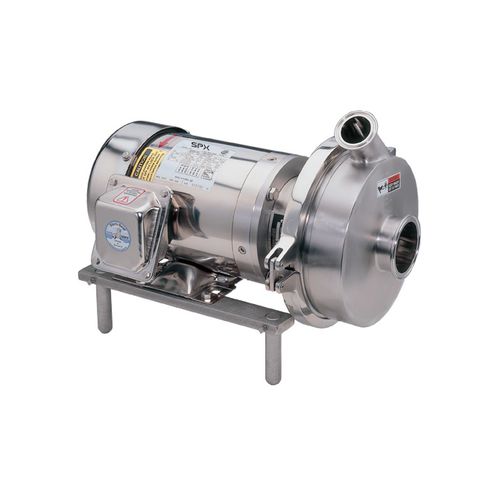

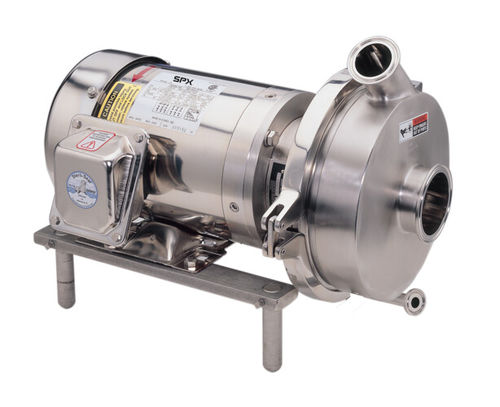

Water pump S200 series
برند:
Waukesha Cherry-Burrell
مشخصات:
PUMPS / CENTRIFUGAL PUMPS
Designed for use in the Bio-Pharmaceutical industry, these pumps are manufactured to ASME BPE specification criteria.
FEATURES
All product contact components are machined from wrought less than 5% ferrite level, 316L SS and feature a 20 Ra product contact surface finish. Material heat numbers are available on all product contact components.
Standard Feature and Benefits
Designed to be Cleanable-in-Place (CIP)
High efficiency, low NPSHR design for a wide variety of applications.
One size mechanical seal for all S200 Series models; reducing parts inventory and cost (commercial seals available)
Integral impeller/shaft design for fewer parts, greater concentricity and easy maintenance
Close coupled pumps use NEMA JM Frame motors with larger diameter shafts and bearings (compared to C Frame motors)
Horizontal, vertical and 45° angle discharge port orientation available
Impellers, casing, and backplate are machined from wrought 316L SS
Stainless steel motor adapters
Reduced validation time
Documentation package
FDA approved fluroelastomers
USP Class VI elastomers
3-A approved and EHEDG certified
KEY APPLICATIONS
Typical product applications:
Pharmaceutical Processing
USP Purified Water
USP Water for Injection
Buffer Distribution & Transfer
Low Viscosity Product Transfer
CIP Solutions
توضیحات:
Fluid
water, for chemicals, for food products
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
for pharmaceutical applications, for the biotechnology industry
Applications
transfer, discharge, distribution
Material
stainless steel
Other characteristics
mechanical, standard, vertical, seal
Flow
Max.: 159 m³/h(5,615.03201 ft³/h)Min.: 22 m³/h(776.92267 ft³/h)
Head
Max.: 109 m(357’07” )Min.: 7 m(22’11” )
Length
Max.: 808 mm(32 in)Min.: 445 mm(18 in)
Width
Max.: 528 mm(20.79 in)Min.: 237 mm(9.33 in)
Height
Max.: 178 mm(7.01 in)Min.: 89 mm(3.5 in)
