نام محصول:
پمپ اب
نام انگلیسی:

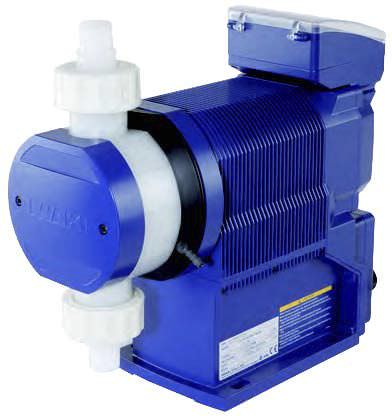

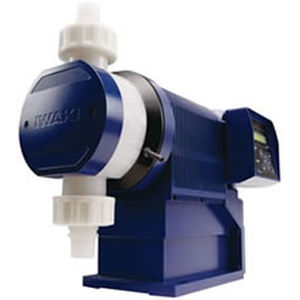

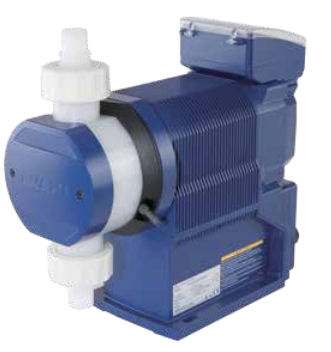

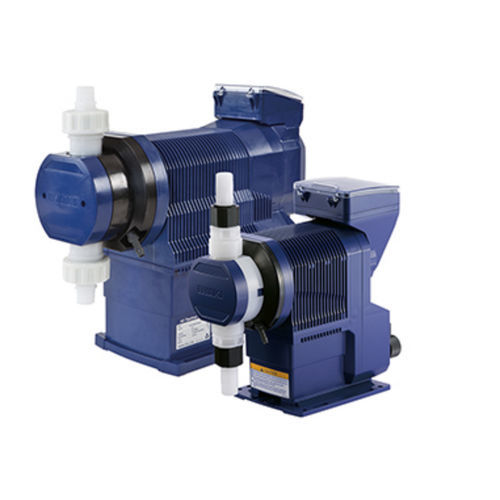

Water pump IX series
برند:
Walchem
مشخصات:
IX Series Metering Pumps are digitally controlled direct-drive diaphragm pumps. Years of experience in high-end motor technology result in extremely accurate and energy efficient metering pumps with high resolution. The IX Series meets today’s demand for automated chemical delivery in industries from water treatment to chemical process. Highly precise control offers a solution for a variety of dosing applications. Standard with several control methods, the IX Series pumps provide a solution to a variety of applications all in one pump.
Key Benefits:
1000:1 Turndown Ratio
IX Series pumps use efficient Brushless DC motors for speed control. High resolution motor control adjusts the discharge and suction speeds to meet a full and accurate turndown ratio up to 1000:1 and flowrates from 80 GPH (300 L/H) down to 0.02 GPH (7.5m L/H).
±1% High Accuracy
Combined with precise motor control, an efficient valve design maintains accurate flow rates to allow a low-cost, mechanically-driven diaphragm pump to achieve a repeatability of ±1%.
70% Energy Savings
Helical gears and return spring reduce power consumption by up to 70% compared to conventional mechanical diaphragm metering pumps.
High Compression Pump Head Design
A fixed stroke length and proprietary liquid end design maintains high compression during each stroke, resulting in fast priming and no gas-lock at any flow rate up to full rated pressures.
توضیحات:
Fluid
water, for chemicals
Operation
brushless DC
Technology
helical gear
Mobility
stationary
Domain
industrial, for water treatment
Applications
discharge, metering, chemical process
Other characteristics
mechanical, standard, direct-drive
Flow
Max.: 79.2 us gal/h(299.80461 l/h)Min.: 0.02 us gal/h(0.07571 l/h)
Pressure
Max.: 247 psiMin.: 85 psi
Power
17 W, 19 W, 62 W, 110 W(0.02 hp, 0.03 hp, 0.08 hp, 0.15 hp)
Weight
Max.: 37.4 kg(82.45 lb)Min.: 7.75 kg(17.09 lb)
