نام محصول:
پمپ اب
نام انگلیسی:

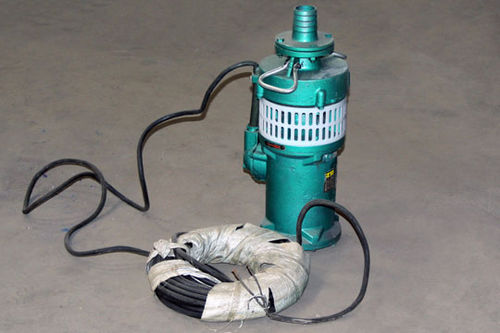

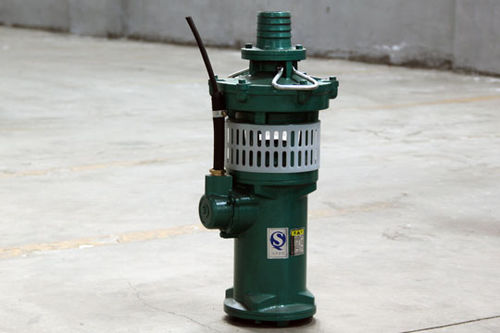

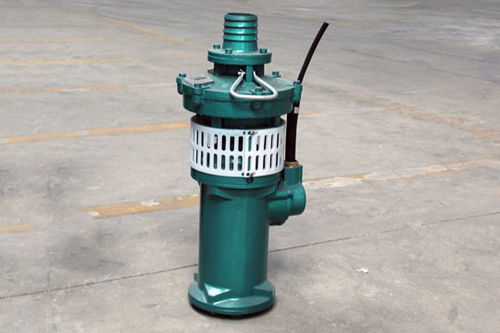

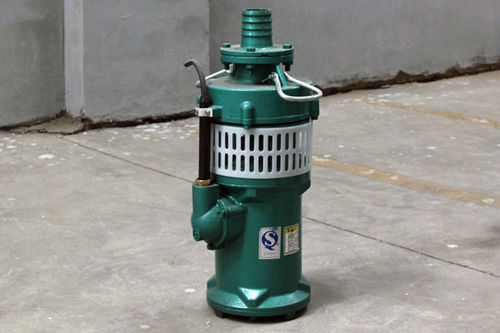

Water pump QY series
برند:
Shanghai Weihu Pump Industry
مشخصات:
QY series submersible pump is widely used in various kinds of water conservancy facilities such as farm irrigation, sprinkler irrigation with water, the supply and drainage system of civil building and, industrial and draining water from the hills and mountainous area, the diversion in low-lying areas, water supply and drainage in urban and rural industrial and mining enterprises etc. The motor and water pump assembly into one, with simple structure, convenient installation remove, cover a small area, easy to use and maintain, safe and reliable operation, no water polluted, etc.
Use Condition:
The depth of submersible pump into the underwater is no more than 5 m; Temperature is no more than 40 ℃; The water sand content or the content of solid particles insoluble in water no more than 0.1% of the volume, particle size is not more than 0.2 mm; No corrosion, water PH of 6.5-8; Such as general temperature water: the water in well, river, or lake.
QY Oil filled submersible electric pump Service conditions
1. The submersible shall be immersed no more than 5m deep under water.
2. Water temperature shall not be higher than 40℃.
3. The sand content shall not be higher than 0.1%. The volume ratio of solid particles insoluble in water shall not be higher than 0.1%, size no bigger than 0.2mm.
4. The water shall be non-corrosive, PH value 6.5~8.5, for example common clean water, well water, river water and lake water at room temperature.
توضیحات:
Fluid
water, oil
Operation
electric
Priming
submersible
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
irrigation, service, drainage
Other characteristics
small
Flow
Max.: 260 m³/h(9,181.81335 ft³/h)Min.: 8 m³/h(282.51733 ft³/h)
Power
Max.: 15 kW(20.39 hp)Min.: 0 kW(0 hp)
Fluid temperature
40 °C(104 °F)
