نام محصول:
پمپ اب
نام انگلیسی:
Water pump OS series
برند:
Shanghai Weihu Pump Industry
مشخصات:

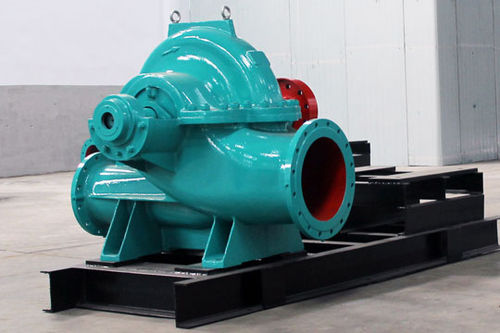

OS Series split-case spiral centrifugal pump is single stage double suction split-case centrifugal pump. It is suitable for pumping liquids in water plants, water circulation in air conditioning, building water supply, irrigation, drainage pumping stations, power stations, industrial water supply system, fire control system, shipping industry, etc. It meets the standards of GB5657.
OS Series split-case spiral centrifugal pump Structure features
1. Compact structure, nice appearance, stable, easy to install
2. Stable operation、the optimized design of double suction impeller minimizes the axial force. The impeller is cast to shape. Its blade has excellent hydraulic performance. The internal surface of the pump shell and the surface of impeller blades are not only very smooth, but resist cavitation very well, and work with high efficiency.
3. We use high quality SKF and NSK bearing, ensuring stable operation, low noise and long service life.
4. BURGMANN mechanical sealing or packing seal method is used for shaft seal, ensuring 8000 hours of leak proof operation.
5. No further adjustment is needed in installation. You can install it in horizontal type or vertical type according to the specific condition of the site.
OS Series split-case spiral centrifugal pump working parameters
Pump outlet diameter: 80-800mm
Flux: ≤11600m2/m
Pump lift: ≤200m
توضیحات:
Fluid
water, air
Operation
electric
Technology
spiral
Mobility
stationary
Domain
industrial
Applications
work, circulation, irrigation, for control, service, drainage, outlet, lift, adjustment
Other characteristics
compact, suction, mechanical, double, axial, vertical, split-case, seal
Flow
Min.: 110 m³/h(3,884.61334 ft³/h)Max.: 12,500 m³/h(441,433.33402 ft³/h)
Head
Min.: 14 m(45’11” )Max.: 147 m(482’03” )
Power
Min.: 7.5 kW(10.2 hp)Max.: 2,000 kW(2,719.24 hp)
Fluid temperature
105 °C(221 °F)
