نام محصول:
پمپ اب
نام انگلیسی:
Water pump QFB-TB
برند:
SHAANXI AEROSPACE POWER HI-TECH CO.,LTD
مشخصات:

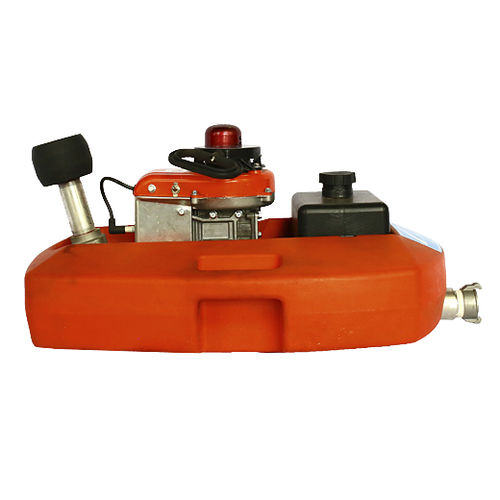

Portable Floating Fire Pump
Product overview
The portable high pressure floating fire pump is a new generation of high-head ultralight pump which developed by our company. The pump unit adopts imported motor and high-end fluid technology, so that the whole pump set is lightweight, compact, small-sized and highly stable. Users can operate skillfully with basic training.
It is mainly used for forest fire fighting, fire fighting of historic building, fire truck water supply, municipal service, agriculture, building industry, mining, port and waterway services.
Feature
Single-stage efficient anti corrosive impeller.
Imported two-stroke air-cooled engine.
Safe, working stably on the water surface.
Lightweight, stable, cost-effective, efficient and suitable for forest fire fighting.
Ultra-low fuel consumption and excellent hydraulic power design make the product more energy-efficient.
With water-free protection function, the gasoline engine automatically reduces to idle speed when the pump leaves the water.
Completely equipped, with spare parts meeting working conditions of forest fire control.
Optional products with remote start function, with reverse charging function.
توضیحات:
Fluid
water, fuel
Operation
gasoline engine
Priming
self-priming
Technology
impeller
Mobility
mobile
Domain
industrial, agriculture
Applications
service, for control, reverse
Other characteristics
compact, single-stage, portable, floating
Flow
Min.: 0 l/min(0 us gal/min)Max.: 230 l/min(60.75957 us gal/min)
Pressure
5 bar, 6 bar, 6.8 bar(72.519 psi, 87.023 psi, 98.626 psi)
Power
8 kW(10.88 hp)
Input diameter
50 mm(1.969 in)
Output diameter
38 mm(1.496 in)
Length
710 mm(28 in)
Width
400 mm(15.75 in)
Height
500 mm(19.69 in)
Weight
20 kg(44.09 lb)
