نام محصول:
پمپ اب
نام انگلیسی:

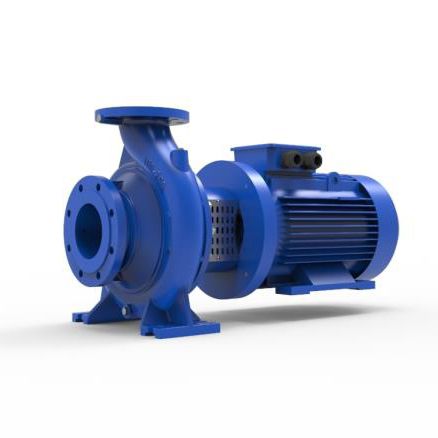

Water pump TKF-M series
برند:
SEMPA LTD
مشخصات:
Design Features
• TKF-M series pumps has designed for pumping non-abrasive and small particulars liquids.
• Pump diamensions are acceptable TS EN 733 standard.
• Suction and discharge flanges are suitable standard ISO 7005-2/PN 16.
• Pump shaft bedding is provided by the motor bearings.
• Sealing is provided by mechanical seal.
• Closed impeller is used.
• TKF-M, TKF as compared to the volume occupied by lighter and smaller
Technicial Specifications
Minimum Efficiency IndexMEI ≥ 0.4 ve MEI ≥ 0.7 (EU 547/2012)
FlowUp to 550 m³/h
Discharge HeadUp to 105 m
RevolutionsUp to 3600 rpm
Operating temperature-20 ⁰C to + 140 ⁰C *
Body Pressure10 – 16 bar
توضیحات:
Fluid
water, for chemicals
Operation
with electric motor
Technology
impeller
Domain
industrial, for the food industry, for the petrochemical industry, agriculture, for the metallurgical industry, for marine applications
Applications
discharge
Fluid specification
for low-viscosity fluids
Other characteristics
single-stage, horizontal mount, high-efficiency, with mechanical seals, with closed impeller
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 550 m³/h(19,423.0667 ft³/h)
Pressure
Min.: 10 bar(145.038 psi)Max.: 16 bar(232.06 psi)
Head
Min.: 0 m(0’00” )Max.: 105 m(344’05” )
