نام محصول:
پمپ اب
نام انگلیسی:
Water pump Beta
برند:
ProMinent Group
مشخصات:

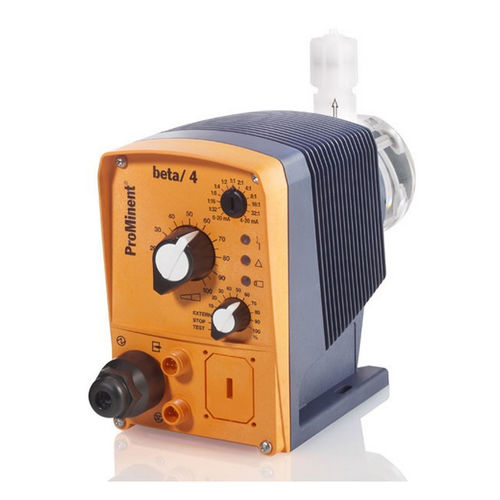

Solenoid-Driven Metering Pump Beta
All-purpose solenoid-driven metering pump for metering liquid media in water treatment and chemical processes: Solenoid-driven metering pump Beta®. Cost-effective, overload-proof, adaptable to existing signal transducers.
Equipped with all the features and properties for superior process management.
A range of different pump types and material combinations are available for virtually all metering applications. The virtually wear-free solenoid drive guarantees an exceptionally long service life even under maximum load.
Your benefits
Optional external control via 0/4 – 20 mA and potential-free contacts with pulse step-up and step-down of 64:1 to 1:64
Simple adjustment of metering capacity via stroke rate and stroke length
Adaptation to existing signal transducers by external control via potential-free contacts with pulse step-up and step-down
Suitable for use with almost all liquid chemicals thanks to the available material combinations: PP, PVDF, clear acrylic, PTFE and stainless steel
Self-bleeding dosing head design in clear acrylic/PVC and PP
Virtually wear-free solenoid drive: economical and overload-proof
توضیحات:
Fluid
water, for chemicals
Operation
solenoid-driven
Technology
diaphragm
Mobility
stationary
Domain
for water treatment
Applications
metering, chemical process
Flow
Min.: 0.74 l/h(0.19549 us gal/h)Max.: 32 l/h(8.45351 us gal/h)
Pressure
Min.: 2 bar(29.008 psi)Max.: 25 bar(362.594 psi)
Fluid temperature
Min.: -10 °C(14 °F)Max.: 45 °C(113 °F)
