نام محصول:
پمپ اب
نام انگلیسی:

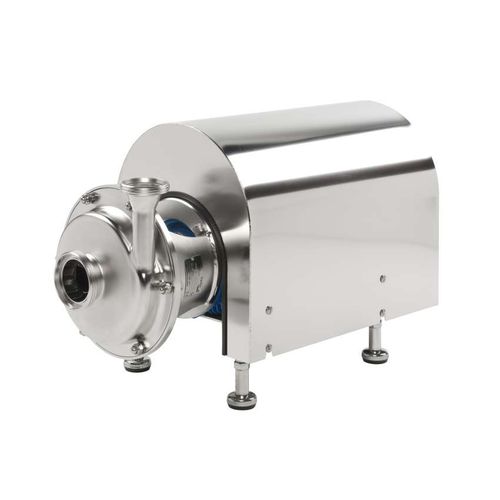

Water pump PRP2, PHP Series
برند:
Pierre GUERIN
مشخصات:
MODEL :
As constructor of pump systems, Pierre Guérin has developed together with the PACKO Inox Company a complete range of centrifugal pumps. The PCP – PHP, PRP series is dedicated to the Biopharmaceutical industry and designed to meet the highest requirements with regards to cleanability: all models are made from Stainless steel EN 1.4404 (316 L) with electro-polished finishing and are certified according to the EHEDG guide lines and the EEC directives. These pumps comply with pharmaceutical regulations and standards (ASME BPE, FDA and USP) and are delivered with the comprehensive relevant documentation.
The PCP pumps are suitable for the transfer of liquid product with viscosity up to 1 000 cpo such as: syrups, parenteral solutions, blood derivatives, demineralized and purified water, cleaning solutions, etc.
Performances of the PCP – PHP, PRP series:
• PHP & PHP2 series: up to 100 m3/h – 11 bar – 45 kW
• PRP2 – 75 m3/h series: up to 7 bar – 22 kW
Maximum temperature: EPDM 130°C – VITON 200°C – FEP 250°C
APPLICATIONS :
– User Benefits –
• EHEDG Certification (FP2 / FP3 series) and EEC compliant
• perfect clean in-place performance thanks to electro-polished finishing (Ra 0.8 or 0.4 μm depending on models), open wheel design and large seal chamber ensuring maximum turbulences during CIP
• mechanical seal compliant to DIN, ISO and AFNOR standards with minimum sensibility to over pressure and water hammer
• very low acoustic level
• minimum NPSH required
• ATEX model available on request
• limited number of spare parts
توضیحات:
Fluid
water
Operation
electric
Technology
centrifugal
Domain
for the pharmaceutical industry
Applications
transfer
Material
stainless steel
Other characteristics
with open impeller
Flow
75 m³/h, 100 m³/h(2,648.6 ft³/h, 3,531.46667 ft³/h)
Pressure
7 bar, 11 bar(101.526 psi, 159.542 psi)
Power
22 kW, 45 kW(29.91 hp, 61.18 hp)
