نام محصول:
پمپ اب
نام انگلیسی:
Water pump LTC
برند:
Parker Precision fluidics Division
مشخصات:

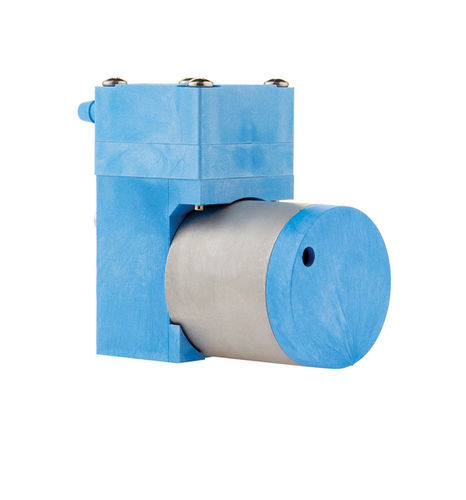

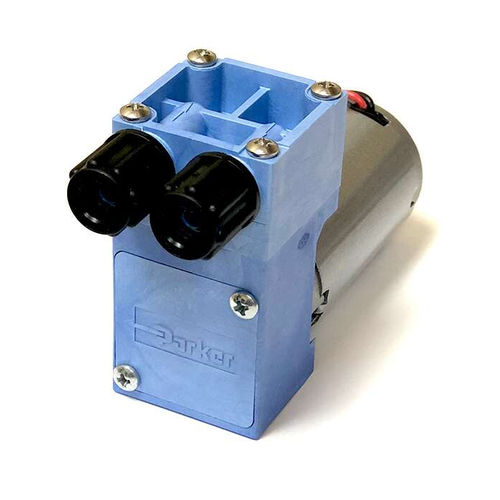

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.
Parker’s LTC Miniature Diaphragm Pumps are offered in both brush and brushless DC motor drives that can be configured for your specific performance requirements and handle a wide range of liquid media over a wide range of pressures. LTC’s patented Fluid-Blok™ Advanced Sealing Technology provides redundant sealing capabilities to eliminate potential leaks. Monolithic diaphragm design enables maximum suction, priming, and continuous dry operation. Ideal for waste, transfer and bulk movement of liquids.
Markets:
• Clinical Diagnostics
• Printing
Features/Benefits:
• LTC Series Pumps set the highest benchmark for service free life expectancy with our advanced proprietary diaphragm elastomer.
• Multiple port designs available for simple integration: Barb tubing connection, 6 mm compression fitting, or 1/4-28 UNF threads with top and bottom face sealing.
• Overmolded diaphragm eliminates metal components in the wetted path resulting in a design that is inert to variety of media.
• Incorporating the lightweight EZ Mount Accessory facilitates simple system assembly while dampening vibration and reducing noise levels.
• Our 100% oil and grease-free pump and compressor design maintains the purity of your system and are commonly used in FDA-approved systems.
• RoHS Compliant
Applications:
• Clinical Chemistry
• Wash and Waste Circuits
• Urinalysis
• Liquid Chromatography
• Large Format Printers
• Photo Processing Printers
توضیحات:
Fluid
water, oil
Operation
brushless DC
Technology
diaphragm
Mobility
stationary
Domain
industrial
Applications
transfer, service, for liquid chromatography
Other characteristics
compact, suction, oil-free, miniature, analytical
Flow
Max.: 0.7 l/min(0.18492 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
30 psi
Fluid temperature
Max.: 50 °C(122 °F)Min.: 5 °C(41 °F)
Length
Max.: 85 mm(3 in)Min.: 55 mm(2 in)
Width
Max.: 33 mm(1.3 in)Min.: 30 mm(1.18 in)
Height
Max.: 81 mm(3.19 in)Min.: 57 mm(2.24 in)
Weight
Max.: 333 g(11.75 oz)Min.: 142 g(5.01 oz)
