نام محصول:
پمپ اب
نام انگلیسی:

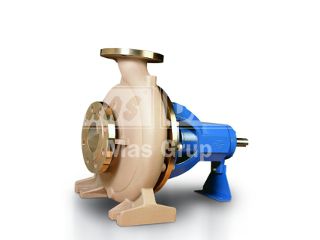

Water pump NM series
برند:
MAS – DAF
مشخصات:
• Single-stage, end-suction centrifugal volute pumps.
• Main dimensions, compatible with EN 733 (DIN 24255) norm. A total of 45 designed pumps avaible in the series.
• Single suction with closed impeller and thrust balanced by means of counter-balancing holes and back wear rings, thus acquiring a dynamic balance.
• The Pump and the motor have a standart connection to the common base plate with a flexible coupling. Maintenance and repair procedures are easily carried out since the pump fixtures can be removed with the volute body.
• Use of extended coupling also enables the removal of the pump fixtureswithout moving the motor or the volute body.
• The series has been designed so that parts are easily replaced and standardized. The entire series is made of only 5 bearings and 5 shaft types, thus simplifying spare parts procurement.
FIELDS OF APPLICATIONS
• Water supply and booster stations.
• Irrigation, sprinkling, drainage processes.
• Tank systems.
• Hot-cold water circulation in cooling systems.
• Pumping of condensed water.
• Circulating water in pools.
• Industrial and domestic fluid pumping processes.
• Marine applications
توضیحات:
Fluid
water
Operation
electric
Technology
centrifugal
Domain
for marine applications
Applications
suction
Other characteristics
single-stage, with closed impeller
Flow
Max.: 3,500 m³/h(123,601.33353 ft³/h)Min.: 5 m³/h(176.57333 ft³/h)
Head
Max.: 105 m(344’05” )Min.: 4 m(13’01” )
