نام محصول:
پمپ اب
نام انگلیسی:

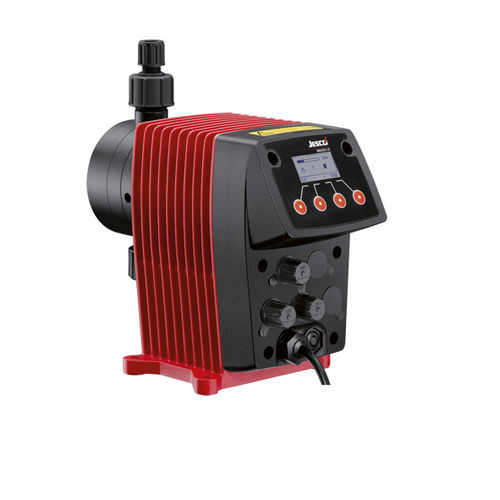

Water pump MAGDOS LA
برند:
Lutz-Jesco GmbH
مشخصات:
Simple to use and space-saving
MAGDOS LA plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or by an analogue input signal (0/4 – 20 mA). The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall.
Dosing head ventilation
Suitable for wall and floor mounting
Material finishes PVC, PP, PVDF
Stroke frequency can be precisely adjusted via the keyboard
Graphic display
Analogue Input settable 0/4 – 20 mA
Level input with early warning and main alarm
Release input for external start/stop
CSA and UL certified
توضیحات:
Fluid
water
Operation
solenoid-driven
Technology
diaphragm
Mobility
stationary, mobile
Domain
industrial
Applications
dosing, process
Material
PP, PVC
Voltage
230 V, 115 V
Protection level
IP65
Other characteristics
compact, small, integrated, wall
Flow
Max.: 15 l/h(3.96258 us gal/h)Min.: 0.36 l/h(0.0951 us gal/h)
Pressure
16 bar(232.06 psi)
Power
Max.: 22 W(0.03 hp)Min.: 8 W(0.01 hp)
Fluid temperature
Max.: 80 °C(176 °F)Min.: 5 °C(41 °F)
Weight
3.2 kg(7.05 lb)
