نام محصول:
پمپ اب
نام انگلیسی:

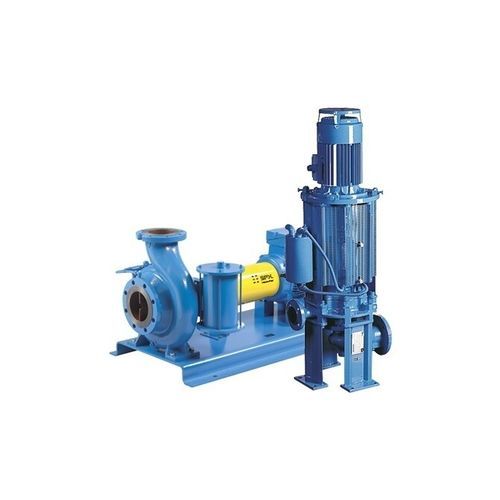

Water pump CombiPrime
برند:
Johnson Pump
مشخصات:
Self-priming centrifugal pump to EN 733 (DIN 24255), Vertical or Horizontal
Standardized and modular design
Self-priming
Built-in vacuum pump with external adjustment
Large air displacement capacity, shortening suction times
Flanges according to ISO 7005 PN 16
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Mechanical seals to EN 12756 (DIN 24960)
2-Angular contact thrust bearings and cylindrical roller bearing
Robust shaft design
Extended life time
Atex Certified
CE Certified
Easy maintenance through the Back-Pull-Out principle
Sea water resistant version available
Available in horizontal and vertical execution
Suitable for
Low viscosity, clean liquids when self-priming is required
توضیحات:
Fluid
water, air
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Protection level
ATEX, robust
Other characteristics
suction, mechanical, modular, large, axial, built-in, vertical
Flow
500 m³/h, 800 m³/h(17,657.33336 ft³/h, 28,251.73338 ft³/h)
Pressure
10 bar(145.038 psi)
Head
100 m(328’01” )
Fluid temperature
80 °C(176 °F)
