نام محصول:
پمپ اب
نام انگلیسی:

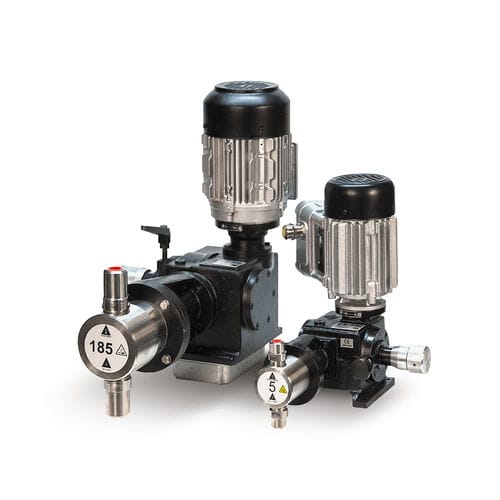

Water pump Tekdos FP
برند:
ITC
مشخصات:
TEKDOS FP series are plunger dosing pumps for continuous operation under hard process conditions.
This is a positive return pump with packing plunger head. A non-loss-motion mechanism, with variable eccentric regulation produces a high accuracy dosing while smooth and safe operation. The TEKDOS series are heavy duty pumps for continuous operation in extreme temperature conditions, high pressure, high viscosity and hazardous areas (ATEX).
These series allows many injection possibilities depending on the head selected. The available heads are from 0.7 to 940 l/h (0.2 to 248 gph). In case there is any doubt about compatibility of materials with the products to be used please contact ITC S.L. Technical Service.
Dosing flow is adjustable with no need to stop the pump from 0% to 100% of its capacity.
توضیحات:
Fluid
water
Operation
electric
Technology
plunger
Mobility
stationary
Domain
industrial
Applications
process, dosing, high-pressure, service, injection
Voltage
400 V, 230 V
Protection level
ATEX
Other characteristics
high-performance, adjustable, flow
Flow
Max.: 1,128 l/h(297.98608 us gal/h)Min.: 0.7 l/h(0.18492 us gal/h)
Pressure
Max.: 370 bar(5,366.396 psi)Min.: 4 bar(58.015 psi)
Power
Max.: 0.75 kW(1.02 hp)Min.: 0.19 kW(0.26 hp)
Length
Max.: 493 mm(19 in)Min.: 285 mm(11 in)
Height
327 mm, 435 mm(12.87 in, 17.13 in)
Weight
30 kg, 50 kg(66.14 lb, 110.23 lb)
