نام محصول:
پمپ اب
نام انگلیسی:
Water pump CMP
برند:
Hayward Tyler®
مشخصات:
CMP

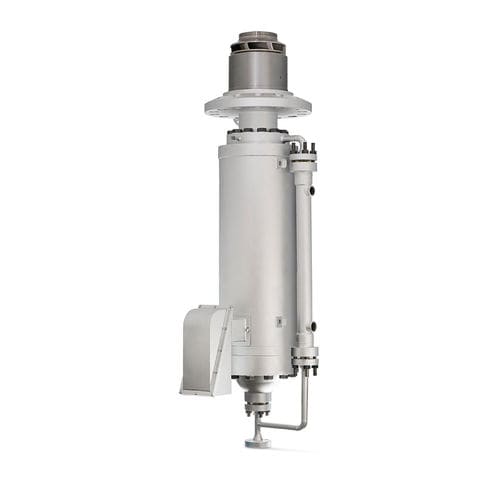

Engineered Canned Motor Pumps
Customized, heavy-duty canned motor pumps for challenging applications that require extra thrust capacity.
Design Features
Hayward Tyler canned motor pumps offer a combined pump and motor on a common shaft, wrapped in a pressure boundary. This eliminates the need for mechanical seals and hence eliminates the chance of a process fluid leak, making it a highly reliable solution for critical applications.
Thrust bearing provides reliability during upset pump conditions
No mechanical seal means no leakage
Inherently safe
Double layer pressure boundary containment
Self-lubricated bearings – no external lubrication system needed
Eliminates pump and motor alignment – common shaft
Low noise
Applications
Hayward Tyler Engineered Canned Motor Pumps are ideal for the following typical plant applications:
NUCLEAR
Reactor Water Clean-Up (RWCU)
Fuel pool
Heavy water transfer/collection
Main coolant pump
Blow Down System Drain/Recirculation
Emergency diesel fuel transfer
Radwaste
Spent fuel pool aux cooling system
Reactor coolant drain
CHEMICAL / PETROCHEMICAL
Acids
Ammonia
Benzene
Butenol
Caustic
Crude Ester
Formaldehyde
Heat transfer oils (Dowtherm, Therminol, Texatherm, etc.)
Hydrogen Sulfide
Nickel Catalyst
Nitroparafins
Olifins
Reactor circulation/injection
Titanium tetrachloride
توضیحات:
Fluid
water, diesel fuel
Operation
electric
Technology
canned motor
Domain
industrial, chemical
Applications
transfer, process, circulation, lubrication
Material
nickel
Other characteristics
heavy-duty, mechanical, lubricated, combined
Flow
Max.: 3,000 us gal/min(11,356.23535 l/min)Min.: 0 us gal/min(0 l/min)
Pressure
Max.: 415 bar(6,019.066 psi)Min.: 0 bar(0 psi)
Head
Max.: 1000’00” (304.8 m)Min.: 0’00” (0 m)
Power
Max.: 335 kW(455.47 hp)Min.: 3 kW(4.08 hp)
