نام محصول:
پمپ اب
نام انگلیسی:

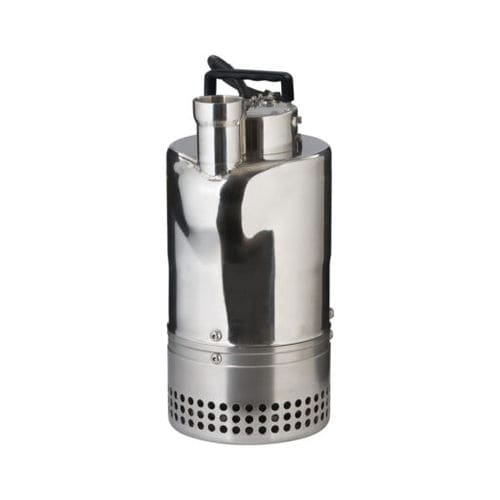

Water pump DEMINY series
برند:
EBARA PUMPS EUROPE
مشخصات:
Submersible pump, with oil bath motor, for cooling and lubrication of the bearings and a double mechanical seal, oil bath (motor side) and water bath (pump side). Suitable for construction site drainage applications.
Submersible pump, with oil bath motor, for cooling and lubrication of the bearings and a double mechanical seal, oil bath (motor side) and water bath (pump side).
The sturdy structure of the DEMINY electric pump makes it extremely versatile.
For further technical information see the Databook
• Drainage of construction sites and small tunnels
• Handling of moderately foul water containing abrasive materials, rainwater and groundwater
توضیحات:
Fluid
water, oil
Operation
electric
Priming
submersible
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial
Applications
handling, cooling, drainage, lubrication, drainage
Material
stainless steel
Voltage
400 V, 230 V
Protection level
IP68
Other characteristics
mechanical, small, double, seal
Flow
0.03333 m³/s(4,237.76001 ft³/s)Max.: 0.03333 m³/s(4,237.76001 ft³/s)Min.: 0 m³/s(0 ft³/s)
Head
Max.: 42.5 m(139’05” )Min.: 2 m(6’06” )
Power
Max.: 12.5 kW(17 hp)Min.: 1.1 kW(1.5 hp)
Fluid temperature
Max.: 35 °C(95 °F)Min.: 0 °C(32 °F)
Width
204 mm, 230 mm, 293 mm(8.03 in, 9.06 in, 11.54 in)
Height
387 mm(15.24 in)
Weight
Max.: 105.5 kg(232.59 lb)Min.: 21 kg(46.3 lb)
