نام محصول:
پمپ اب
نام انگلیسی:

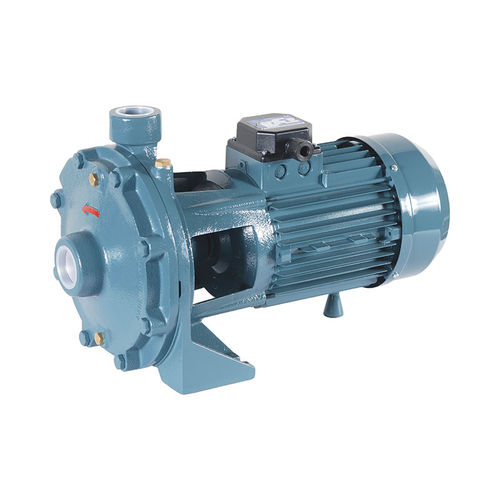

Water pump STDM / STD series
برند:
Conforto
مشخصات:
THESE DOUBLE COUNTERACTING-IMPELLER PUMPS WITH AXIAL INTAKE AND UPWARD-FACING RADIAL DELIVERY ARE TYPICALLY USED IN APPLICATIONS REQUIRING HIGH DISCHARGE HEAD VALUES, PARTICULARLY IN INDUSTRIAL, AGRICULTURAL AND DOMESTIC APPLICATIONS.
SCOPE OF APPLICATION: These double counteracting-impeller pumps with axial intake and upward-facing radial delivery are typically used in applications requiring high discharge head values, particularly in industrial, agricultural and domestic applications. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matters, with temperatures not higher than 80°C.
PUMP: Horizontal axis pump with bronze closed impeller, pump body and base support made of G20 cast iron, AISI 304 stainless steel shaft and mechanical seal made of ceramic/graphite.
MOTOR: Electric, closed-type with external cooling fan, IP 44 safety class. F insulation. The standard versions of single-phase motors are fitted with termostat-controlled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps.
TENSION: STDM: 230-240 V. 50 Hz; STD: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request.
APPLICATIONS: Domestic, Irrigation, Agriculture, Aqueduct, Car washing, Fire fighting, Industry
توضیحات:
Fluid
water
Operation
electric
Priming
self-priming
Technology
impeller
Mobility
stationary
Domain
industrial, agriculture
Applications
discharge, cooling, irrigation, washing
Material
stainless steel, cast iron, ceramic, bronze
Voltage
400 V, 230 V, 240 V
Other characteristics
double, axial, radial
Flow
Max.: 10.8 m³/h(381.3984 ft³/h)Min.: 0 m³/h(0 ft³/h)
Head
Max.: 92.5 m(303’05” )Min.: 20 m(65’07” )
Power
Max.: 5.5 kW(7.48 hp)Min.: 0.55 kW(0.75 hp)
Fluid temperature
80 °C(176 °F)
Length
Max.: 463 mm(18 in)Min.: 345 mm(14 in)
Width
Max.: 266 mm(10.47 in)Min.: 190 mm(7.48 in)
Height
Max.: 305 mm(12.01 in)Min.: 235 mm(9.25 in)
Weight
Max.: 54.2 kg(119.49 lb)Min.: 14.8 kg(32.63 lb)
