نام محصول:
پمپ اب
نام انگلیسی:

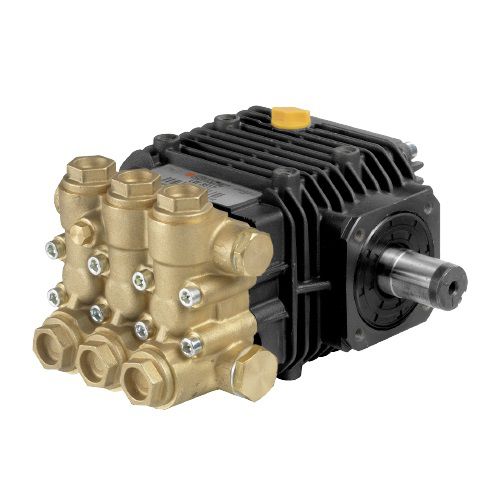

Water pump LW series
برند:
COMET Spa
مشخصات:
Brass Head
Forged Bronze Connecting Rods with Lifetime Warranty
Hardened Stainless Steel Piston Guides
High Efficiency Stainless Steel Check Valves
Abrasion Proof, Heat Resistant, Industrial Ceramic Plungers
High Quality Buna- Textile Double-Sealing V-Packings
Die-Cast, Anodized Aluminum Crankshaft-Fin Design for Optimal operating Temperature
High Quality Oversized Ball Bearings
Optimal Oil Bath for High Speed Operation
S 24mm Solid Shaft for Belt Drive, Gearbox or Flex Couplers
توضیحات:
Fluid
water, oil
Operation
with electric motor
Technology
piston
Mobility
stationary
Domain
industrial
Material
stainless steel, aluminum, ceramic, bronze, brass, cast aluminum
Other characteristics
corrosion-resistant, belt drive, triplex
Flow
Max.: 13.4 l/min(3.53991 us gal/min)Min.: 8 l/min(2.11338 us gal/min)
Pressure
Max.: 172 bar(2,494.649 psi)Min.: 90 bar(1,305.34 psi)
Power
Max.: 4 kW(5.44 hp)Min.: 2.2 kW(2.99 hp)
Length
196 mm(8 in)
Width
191 mm(7.52 in)
Height
118 mm(4.65 in)
Weight
4.8 kg, 6.1 kg(10.58 lb, 13.45 lb)
