نام محصول:
پمپ اب
نام انگلیسی:

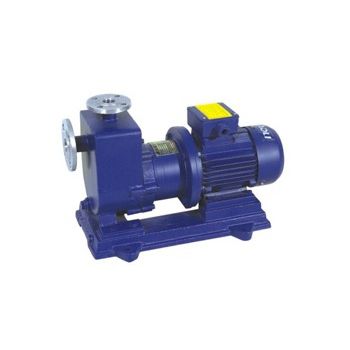

Water pump ZCQ series
برند:
AOLI PUMP MANUFACTURE
مشخصات:
ZCQ type self-priming magnetic power drive pump is the new product tested and researched on the basis of CQ type magnetic power drive pump and absorbed the advanced international technique by the technicians of our company according to the requirement of our customers.
The pump not only has the character of CQ type magnetic power drive pump that is whole sealed, no leak and corrosion resistant, but also is self-priming, no need foot valve, the self-priming height is 4m. It can be widely used to petroleum, chemistry, pharmacy, electroplate, printing and dyeing, food, science research and other units. It is applicable to pump and transport the acid, alkaline liquid, oil, rare expensive liquid, poisonous liquid, volatile liquid and water circulation equipment, especially the pumping and transportation of the flammable, leaky and explosive liquid.
توضیحات:
Fluid
water, oil, acid, for bases, for crude oil
Operation
magnetic-drive
Priming
self-priming
Technology
centrifugal
Domain
chemistry
Applications
circulation, transport
Material
stainless steel
Fluid specification
for flammable fluids
Flow
Max.: 102 m³/h(3,602.09601 ft³/h)Min.: 3 m³/h(105.944 ft³/h)
Pressure
Max.: 1,600,000 Pa(232.06 psi)Min.: 0 Pa(0 psi)
Head
Max.: 50 m(164’00” )Min.: 12 m(39’04” )
Power
Max.: 22 kW(29.91 hp)Min.: 0.37 kW(0.5 hp)
