نام محصول:
پمپ آب گرم
نام انگلیسی:

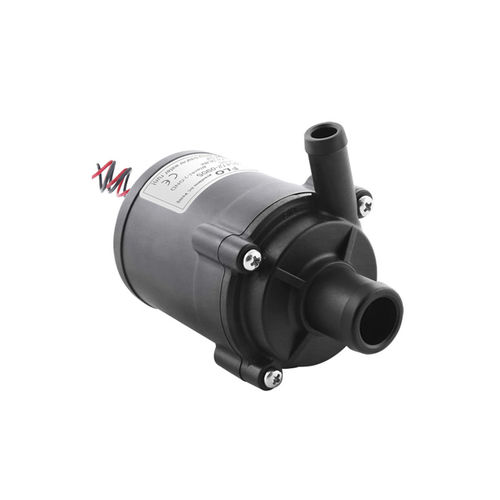

Hot water pump TL-B10
برند:
TOPSFLO INDUSTRY AND TECHNOLOGY CO., LIMITED
مشخصات:
16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60+ patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
Product Features:
1.Advanced magnetic driving technology for static-seal, without any leakage forever
2.Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
3.Heavy duty work, can sustain continuous 24 hours work
4.Special designed high efficiency closed-type impeller 5.Sustain 100°C hot water circulation
6.All wetted materials FDA approved to be safety usage 7.Low or no maintenance 8.Can customized
9.Protection Function: Blocked-Protection，Polarity Protection
Custom function: Over-Current Protection，Dry-running Protection，Over-voltage protection
توضیحات:
Fluid
for hot water, beverage
Operation
with brushless DC motor
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
transfer, cooling, circulation
Voltage
24 V, 12 V
Other characteristics
dry, with closed impeller, micro, battery-powered
Flow
7 l/min, 9 l/min, 12 l/min(1.8492 us gal/min, 2.37755 us gal/min, 3.17006 us gal/min)
Head
3 m, 5 m, 8 m(9’10” , 16’04” , 26’02” )
Fluid temperature
Max.: 100 °C(212 °F)Min.: -40 °C(-40 °F)
Input diameter
17.5 mm(0.689 in)
Output diameter
10.5 mm(0.413 in)
