نام محصول:
پمپ آب پاک
نام انگلیسی:
Clear water pump NCBK
برند:
SAER
مشخصات:
PUMPS FOR HIGH FLOW RATES

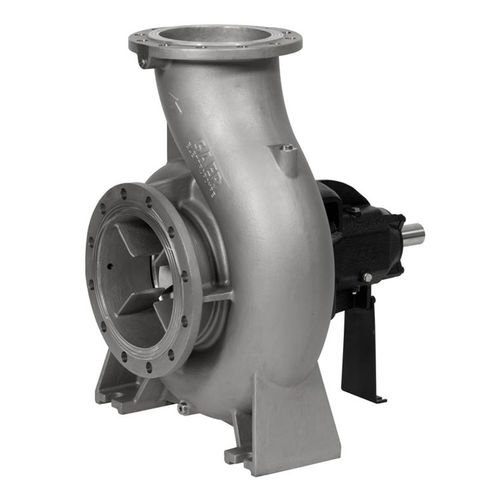

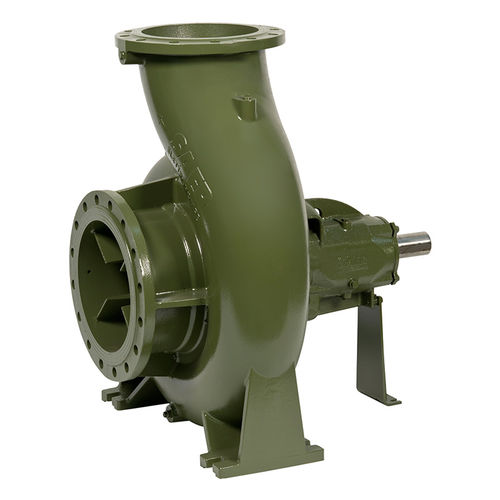

Single-stage end-suction centrifugal pump, body with dimensions meeting and exceeding EN 733. Ideal for applications where very high flow rates are required, such as irrigation systems, for water supply in general, heating or refrigeration, in the industrial, marine or mining sectors.
Base designed to ensure strength and safety, optimised weight and reduced vibration.

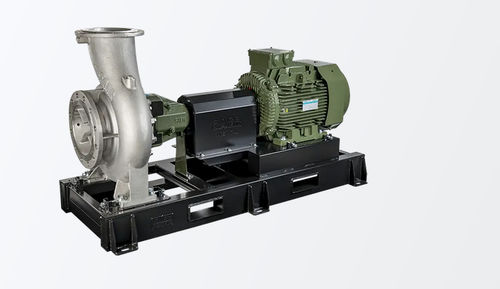

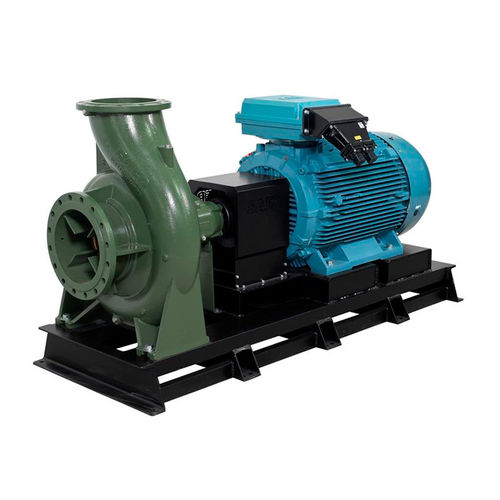

The super duplex versions also allow for use in desalination plants. Can be supplied with bare shaft, as a complete unit or complete unit with joint and base, without motor
AVAILABILITY AND VARIANTS
Available in different configurations on the basis of the characteristics of the fluid and the conditions of use, including for vertical installations
Can be coupled to Diesel engines
Version with ACS certification for potable water available
Version for fluids up to 120°C on request
Possibility of special paints and coatings
ANSI standard hole patterns on request
PAT (pump as turbine) version available
توضیحات:
Fluid
for clear water
Operation
diesel engine
Technology
turbine
Mobility
stationary
Domain
industrial
Applications
cooling, irrigation, firefighting
Material
stainless steel, cast iron, bronze
Other characteristics
suction, mechanical, standard, single-stage, for fluids, vertical, heating
Flow
1,700 m³/h, 2,300 m³/h(60,034.93343 ft³/h, 81,223.73346 ft³/h)
Head
97 m, 120 m(318’02” , 393’08” )
Power
400 kW, 500 kW(543.85 hp, 679.81 hp)
Fluid temperature
120 °C(248 °F)
