نام محصول:
پمپ آب پاک
نام انگلیسی:

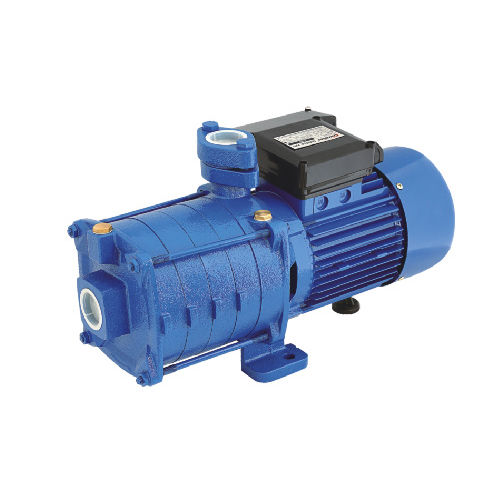

Clear water pump HMP
برند:
Fujian Mindong Electric Co., Ltd.
مشخصات:
Applications and installation
The HMP series are designed to work with clean water in domestic applications, irrigation, industry, etc. the pump body is made of stainless steel, so that they are of beautiful design. at the same time, they have the advantage of low noise, easy operation and reliable performance.
Pumps should be installed in a covered area, protected against the weather.
توضیحات:
Fluid
for clear water, oil
Operation
with electric motor
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
irrigation, feed
Material
stainless steel
Other characteristics
horizontal mount, multi-stage, low-noise level
Flow
Min.: 0 l/min(0 us gal/min)Max.: 100 l/min(26.41721 us gal/min)
Pressure
10 bar(145.038 psi)
Head
Min.: 4 m(13’01” )Max.: 52 m(170’07” )
Power
Min.: 1.1 kW(1.5 hp)Max.: 1.5 kW(2.04 hp)
Fluid temperature
40 °C, 80 °C(104 °F, 176 °F)
Length
443 mm(17 in)
Width
199 mm(7.83 in)
Height
258 mm(10.16 in)
Weight
33.5 kg(73.85 lb)
