نام محصول:
پمپ آب دریا
نام انگلیسی:

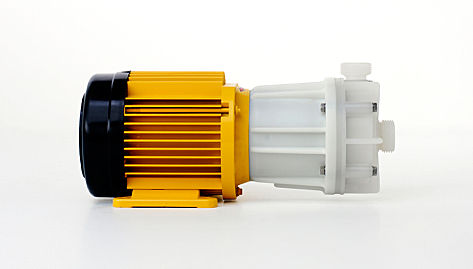

Seawater pump MPN series
برند:
SCHMITT – Kreiselpumpen GmbH & Co. KG
مشخصات:
The MPN Pump Series is particularly suitable for crystallizing media (no air
can get inside), toxic or environmentally hazardous media. A small amount of
gas in the liquid can also be transferred without disrupting the liquid flow.
Materials: PVDF (polyvinylidene fluoride) oder PP (polypropylene)
Max. output rate: 400 l/min
Max. discharge head: 32 m
Motor power: 0.18 – 3.0 kW
advantages:
»»highest chemical resistance
»»robust design – without vulnerable (floating) axles
»»low-maintenance through double hydro-dynamic slide bearings with extra big radii
»»long-lasting and wear-resistant through axial thrust compensation
»»half-open impeller (i.e. solids up to 3 mm of grain size and 10 Vol. % are possible)
»»no metal parts are in contact with the medium
»»easy to maintain (wear parts can be changed swiftly)
»»universally applicable, quiet and compact
»»available as explosion proof version for combustible environments
Model article number: MPN
توضیحات:
Fluid
for seawater, for chemicals
Operation
with electric motor, magnetic-drive
Priming
normal priming, submersible
Technology
centrifugal
Applications
for cleaners
Material
PVDF, stainless steel, PP
Fluid specification
for aggressive media, for corrosive fluids, for high-purity fluids, for toxic fluids
Protection level
ATEX, explosion-proof, chemical-resistant, abrasion-resistant
Other characteristics
with seal, close-coupled, corrosion-resistant, vertical, small, cantilevered, variable-speed, hermetically-sealed
Flow
400 l/min(105.66882 us gal/min)
Head
32 m(104’11” )
Power
Max.: 3 kW(4.08 hp)Min.: 0.18 kW(0.24 hp)
