نام محصول:

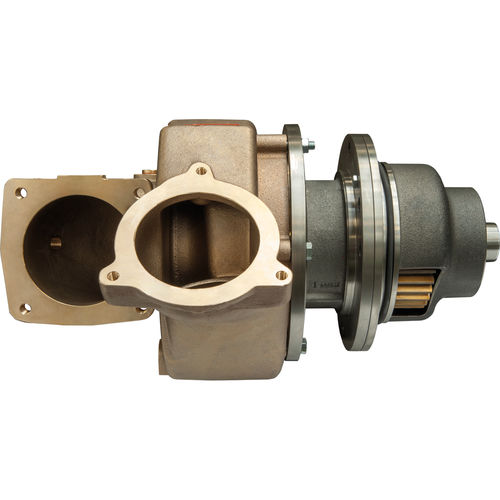

پمپ آب دریا
نام انگلیسی:
Seawater pump
برند:
Gebr. Steimel
مشخصات:
Steimel seawater pumps are used for cooling via heat exchanger of high and medium-speed diesel and gas engines. The gear driven pump is flange-mounted to the engine’s gear box. Belt driven pump is available as an alternative. Self-priming function is featured in certain models.
Designs and key data of seawater pumps:
– Centrifugal pump or side-channel pump models
– Flow rate up to 350 m³ / h
– Pressure rise: max. 5 bar
– Temperature range: 0 to 35 °C
– Self-priming possible depending on model
– Material design:
– Drive shaft: Stainless steel
– Impeller and housing: Seawater-resistant bronze
– Bearing housing: Grey cast iron
توضیحات:
Fluid
for seawater
Operation
diesel
Priming
self-priming
Technology
centrifugal
Domain
industrial
Applications
cooling
Material
cast iron
Other characteristics
flange-mounted
Flow
Max.: 350 m³/h(12,360.13335 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
Max.: 5 bar(72.519 psi)Min.: 0 bar(0 psi)
