نام محصول:
پمپ آب خنک کننده
نام انگلیسی:
Cooling water pump gamma/ X
برند:
ProMinent Group
مشخصات:

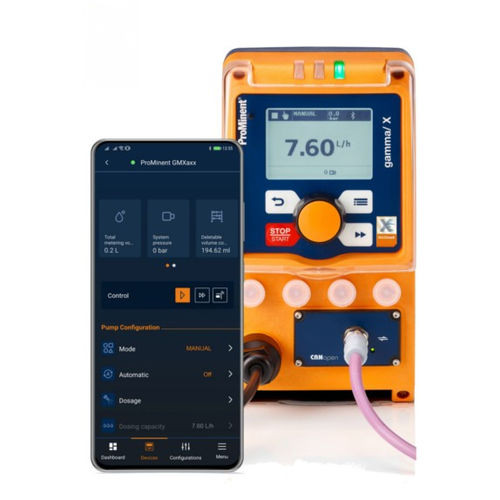

The new solenoid-driven metering pump gamma/ X is user-friendly and has a long service life, just like its predecessor. An ingenious solenoid control measures the pending back pressure and protects the system from overload. This technology makes a pressure sensor superfluous, meaning that operating safety can be significantly increased: no additional parts come into contact with the feed chemical, there are no additional sealing surfaces and no electronic components come near the feed chemical.
Whether the metering volume fluctuates or hydraulic failures affect the metering process – the gamma/ X allows you to keep an eye on everything.
It independently ensures a trouble-free metering process and, should the pump ever need maintenance, its service module draws attention to this.
Your benefits
Simple adjustment of the metering rate directly in l/h
In concentration mode, direct input of the required and desired concentration during volume-proportional metering tasks
Integrated pressure measurement and display for greater safety during commissioning and in the process
Control range for metering rate 1:40,000
Virtually wear-free solenoid drive, overload-proof and economical
Suitable for continuous micro-metering from approx. 1 ml/h, thanks to the regulated solenoid drive
توضیحات:
Fluid
for cooling water, for chemicals, for gas
Operation
solenoid-driven
Technology
diaphragm
Domain
chemical, for water treatment, for the paper industry
Applications
proportional dosage, metering
Material
PVDF, PP, PTFE
Fluid specification
for high-viscosity products
Other characteristics
with digital control, stand-alone, sensor
Flow
Min.: 2.3 l/h(0.6076 us gal/h)Max.: 45 l/h(11.88774 us gal/h)
Pressure
Min.: 2 bar(29.008 psi)Max.: 25 bar(362.594 psi)
Power
25 W, 30 W(0.03 hp, 0.04 hp)
