نام محصول:
پمپ آب خنک کننده
نام انگلیسی:

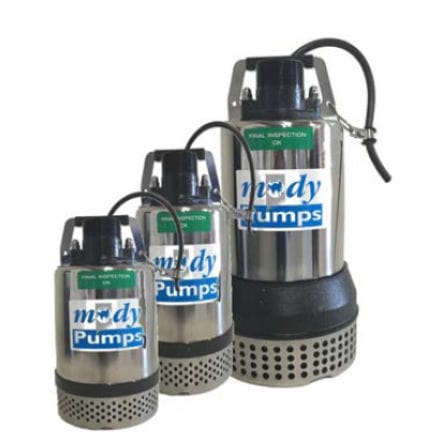

Cooling water pump ‘M’ series
برند:
Mody Pumps (Europe)
مشخصات:
MOTOR
2-pole induction continuous rated motor with squirrel cage rotor. Stator insulation class ‘F’ (155ºC), rated IP68.
BALL BEARINGS
The rotor shaft is carried in two single row, deep groove ball bearings. The bearings are enclosed with high temperature grease sealed for life.
POWER CABLE
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 20ft. (6m) length standard (M0.5/M1) and 33 feet on M2. Type SJTW in North America.
SHAFT SEAL
Double Silicon Carbide/Silicon Carbide and Carbon/Ceramic Mechanical seals with External Oil Seal.
CORROSION RESISTANT
304 SS Outer Casing
304 SS Stator Casing
Cast Iron Diffuser
Shaft: Heat Treated 410 Stainless Steel
Hardware: 304 Stainless Steel
Impeller: Cast Iron
pH Range 5 – 8
توضیحات:
Fluid
for cooling water
Operation
electric
Priming
submersible
Technology
impeller
Domain
industrial
Applications
dewatering, sump
Material
stainless steel, cast iron, ceramic
Fluid specification
for abrasive fluids, for corrosive fluids
Other characteristics
compact, mechanical, mobile, waterproof
Flow
Min.: 0 us gal/min(0 l/min)Max.: 120 us gal/min(454.24941 l/min)
Head
70’00” (21.34 m)
Power
0.4 kW, 0.5 kW, 0.75 kW(0.54 hp, 0.68 hp, 1.02 hp)
