نام محصول:
پمپ آب خالص
نام انگلیسی:

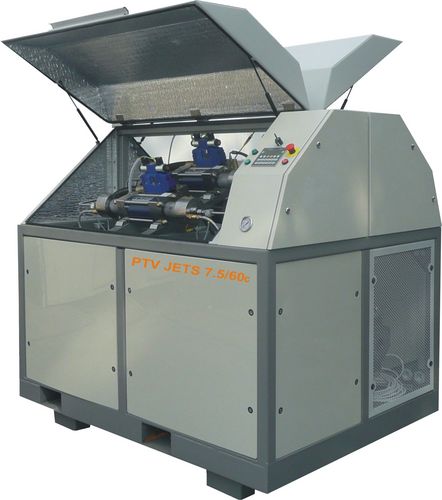

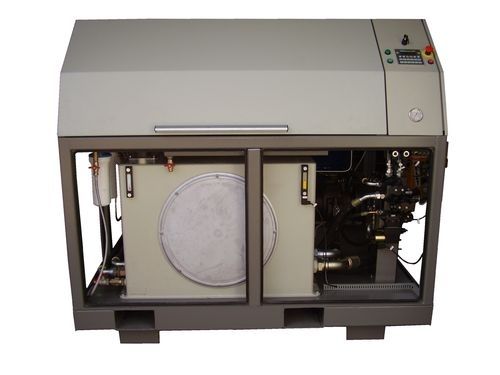

Pure water pump PTV JETS – 7.5/60c
برند:
PTV spol. sr.o.
مشخصات:
Use:
Pure water cutting with more cuttingheads
Abrasive jet cutting with one water orifice size .020″ or with two water orifices size .014″, or with 4 x .010″
Top-quality model, fitted with electronic control
Low oscillation of pressure
High level of cutting pressure
Air cooler not integrated in the pump
Integrated electrical switchboard
Power electrical switchboard not integrated in the pump
Full-electronical control
Easy and quick installation at the customer´s
HP pump includes :
Two-stage filtration unitfor mechanical filtration of inlet water
Automatic bleed down valve as a safety element which depressurizes the HP tubing when pump is stopped
Slow pressure increrase which reduces pressure shocks and electrical starting current
Internal diagnostic system which stops the pump when the limit values are overpassed
Air cooler of hydraulic oil with a closed cooling circuit
Electrical switchboard for delta/ star start
Pump control
Full-valued remote control of the HP pump from the control system of the cutting table and from the cutting program
10 pressure levels
توضیحات:
Fluid
for pure water
Operation
electric
Priming
normal priming
Technology
piston
Domain
industrial
Applications
for water-jet cutting, ultra high-pressure
Other characteristics
two-stage
Flow
7.5 m³/h(264.86 ft³/h)
