نام محصول:
پلاگین کم مشخصه

نام انگلیسی:

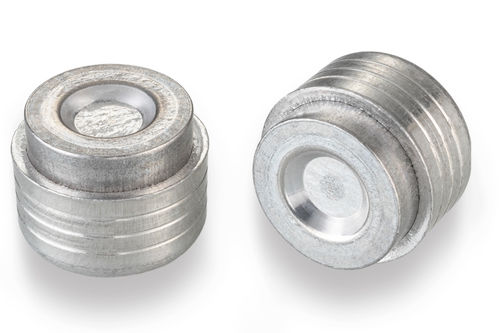

Low-profile plug Short Betaplug®

برند:
THE LEE COMPANY

مشخصات:

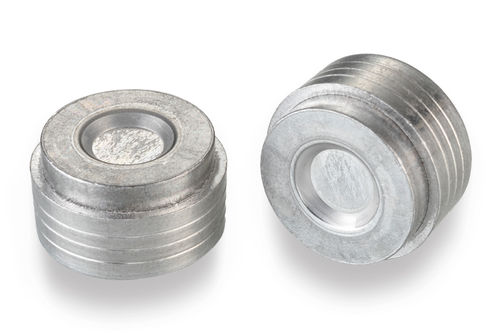

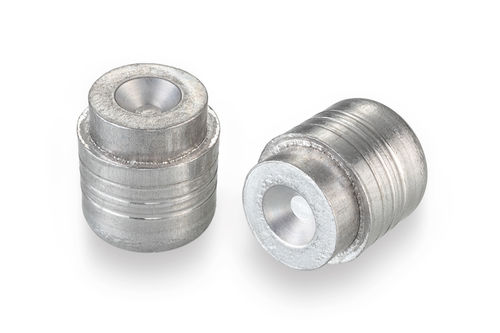

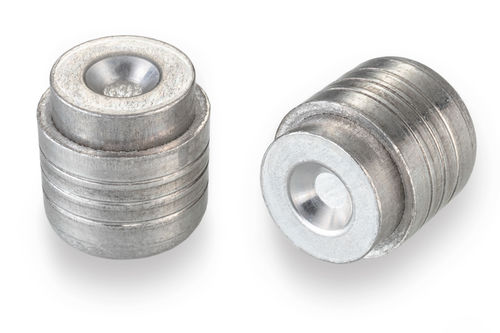

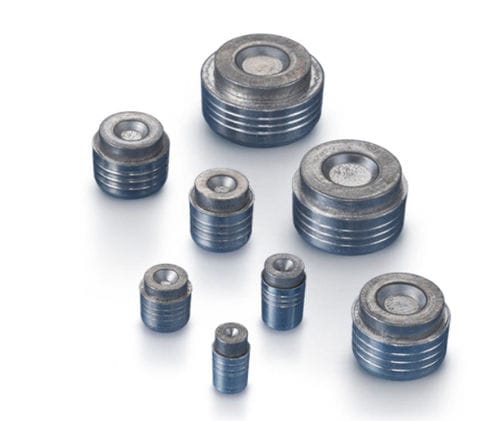

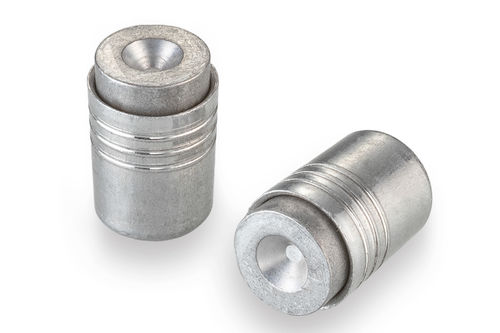

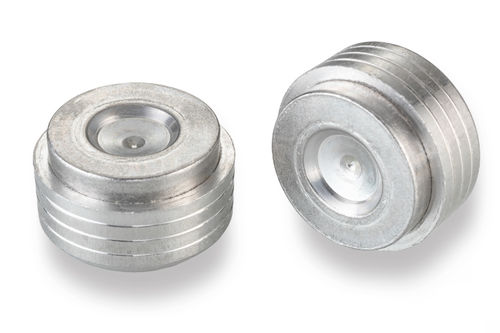

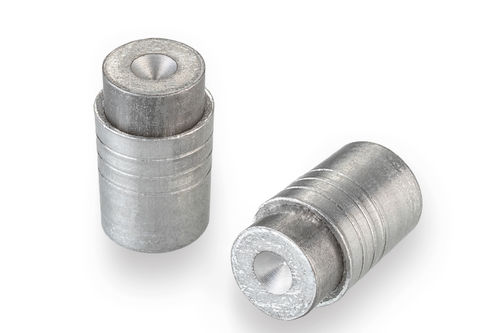

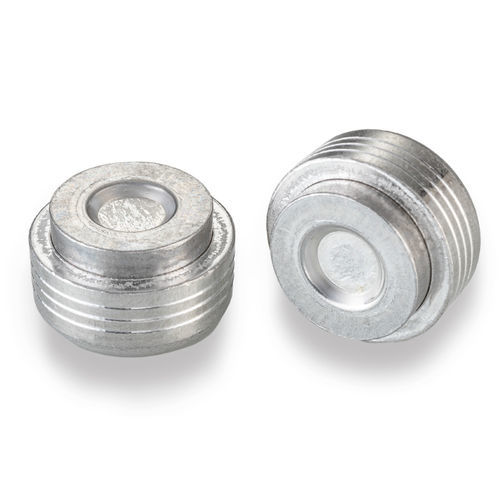

The Short Betaplug was developed to optimize process and product settings and allows for the shortest installed height. Install the Short Betaplug in systems up to 500 psi, and choose plugs that range from 5 mm to 20 mm in diameter.

The 11mm Short Betaplug® Expansion Plug is a pre-assembled, one-piece, tapered expansion plug specifically engineered to seal fluid passages in metal castings and plastic housings leak-tight, without the use of threads or sealants. Controlled expansion during installation causes the lands and grooves on the O.D. of the plug body to bite into the wall of the fluid passage, creating a leak-tight seal and assuring retention. The unique tapered design eliminates the need for tight manufacturing tolerances, and allows the designer to minimize the wall thickness required around the plug, even for brittle housing materials.

توضیحات:
Form
cylindrical, conical, low-profile

Type
non-threaded

Material
metal

Function
leak-proofing, pressurisation, locking, assembly

Product applications
industrial, insert, housing, for hydraulic applications, for industrial applications, clutch, for automobiles, for chassis, for automotive applications, for machinery, for marine applications, for mining equipment, for motors, metal

Other characteristics
pressure, with metal insert, expansion

Diameter
Max.: 20 mm(0.787 in)Min.: 5 mm(0.197 in)

Operating temperature
Max.: 135 °C(275 °F)Min.: -40 °C(-40 °F)
