نام محصول:
پلاگین ضد نشت
نام انگلیسی:

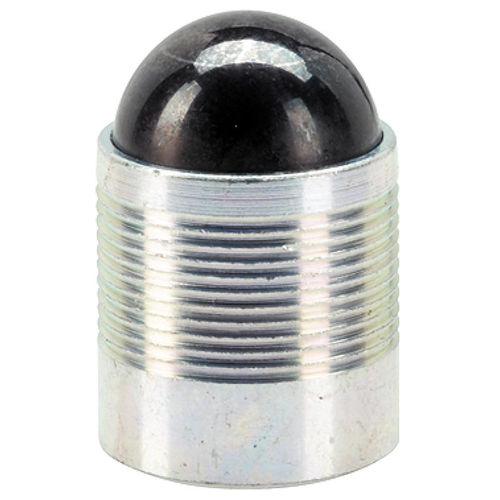

Leak-proofing plug EH 22880. series
برند:
HALDER France
مشخصات:

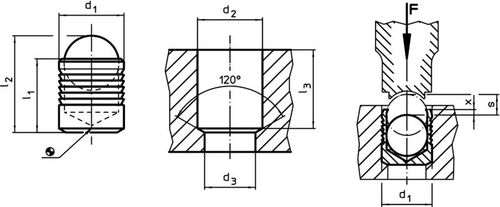

Expander® sealing plugs are used for safe, quick and economic sealing of bore holes in fluid technology, e.g. hydraulic drilling holes in jig and fixture construction. Assembly is effected by pressing in the sealing plug into the drilling hole by means of the prescribed setting die.
Please refer to the technical data following these product information pages.
Material
Body
Case-hardened steel, zinc-coated, thick-film passivated
Ball
Roller bearing steel, heat-treated, tempered
توضیحات:
Form
cylindrical
Type
non-threaded
Material
steel, zinc, hardened steel, coated
Function
leak-proofing, assembly, drilling
Product applications
construction, bearing, case, film
Other characteristics
with obturator
Diameter
Max.: 22 mm(0.866 in)Min.: 4 mm(0.157 in)
